Tenmars EMF Meter Model TM-190T Updated Model
The Tenmars TM-190T Multi-Field EMF Meter offers three measurements all in one straightforward handheld meter:
A three-axis magnetic field measuring device (Gauss Meter), with 3-channel internal measurement sensors(X,Y and Z) which enable reliable measurements and monitoring of low-frequency Electromagnetic Field strength, an Electric Field Meter, used for measuring low-frequency electric fields and an RF Field Strength Meter, preforming at frequencies from 50Mhz to 10 Ghz making it reliable for microwave leakage detection and other RF emitting equipment.

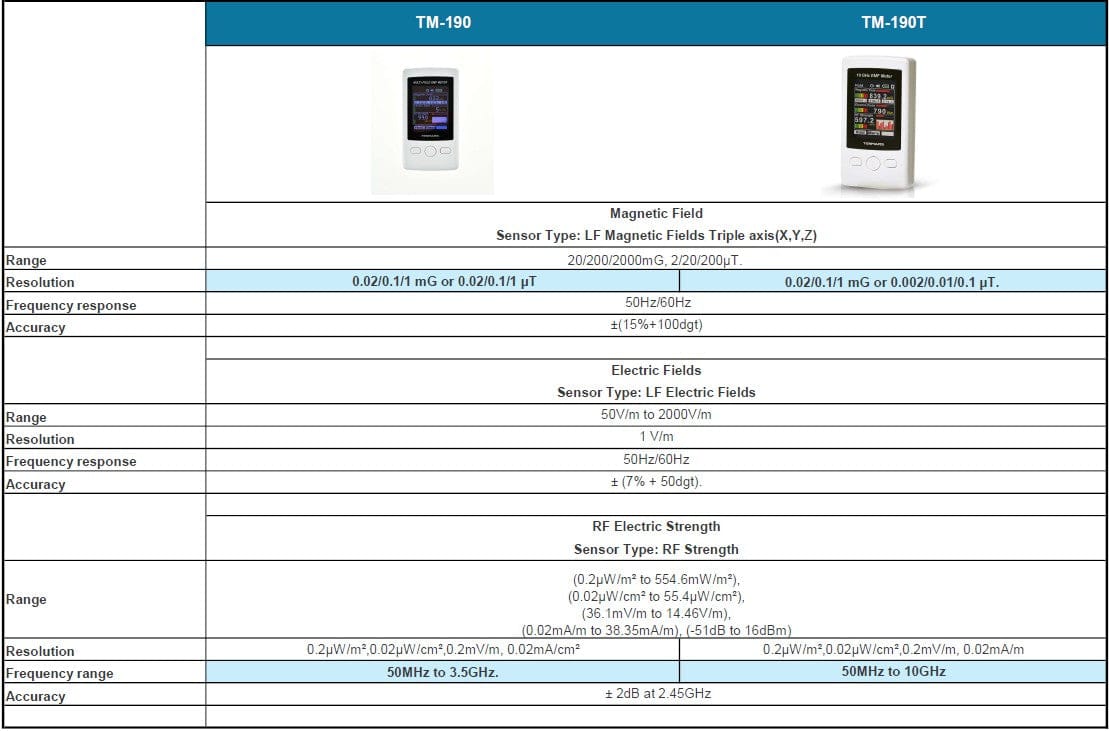

Magnetic Field, Sensor Type: LF Magnetic Fields Triple axis (X,Y,Z)
MF Range - 20/200/2000mG, 2/20/200μT
MF Resolution - 0.02/0.1/1 mG or 0.002/0.01/0.1 μT.
MF Frequency Response - 50Hz/60Hz
Accuracy - ±(15%+100dgt)
Electic Fields, Sensor Type: LF Electric Fields
Range - 50V/m to 2000V/m
Resolution - 1V/m
Frequency Response - 50Hz/60Hz
Accuracy - ± (7% + 50dgt)
RF Electric Strength, Sensor Type: RF Strength
RF Range - (0.2μW/m² to 554.6mW/m²),
(0.02μW/cm² to 55.4μW/cm²),
(36.1mV/m to 14.46V/m),
(0.02mA/m to 38.35mA/m), (-51dB to 16dBm)
RF Resolution - 0.2μW/m²,0.02μW/cm²,0.2mV/m, 0.02mA/m
RF Frequency range - 50MHz to 10GHz
Accuracy - ± 2dB at 2.45GHz
*Requires 3 x AAA batteries
Applications:
The TM-190T utilises a simple to read full colour TFT display and presents the information to the user clearly, with three readings (RF field strength, electric field and magnetic field) displayed on the screen at the same time, making the TM-190 a very easy to use device. Furthermore, the data hold function allows the user to freeze the display at any time for easier reading.
• Low frequency (EMF) electromagnetic field strength measurement, electric field measurement and RF field strength monitoring.
• Overhead power lines, appliances, industrial applications, RF emitting equipment (cellular communications), microwave leakage.
• Personal living environment EMF safety
Features:
• Three measurements in one meter - Electromagnetic field, electric field and RF field strength.
• For triple-axis measurements of low-frequency electromagnetic fields, as well as electric and RF fields.
• Quick and easy measurement with three-channel measurement sensors
• Colour TFT display for measurement of all three fields simultaneously.
• Data hold (HOLD) function
• Auto-ranging
• Easy & safe to use
• Battery life indicator
*Please note this is the TM-190T model
- Display: 4 digits, 2.4 inches color TFT LCD.
- Sample rate: 6 seconds per time.
- Battery life: approximately 8 hours.
- Battery: 1.5V AAA alkaline battery*3
- Audible key tone alarm: buzzer
- Operating temperature & humidity: 5°C to 40°C, below 80% RH.
- Storage temperature & humidity: -10°C to 60°C, below 70%.
- Weight: about 120g.
- Dimensions: 115(L) x 60(W) x 21(H) mm.
