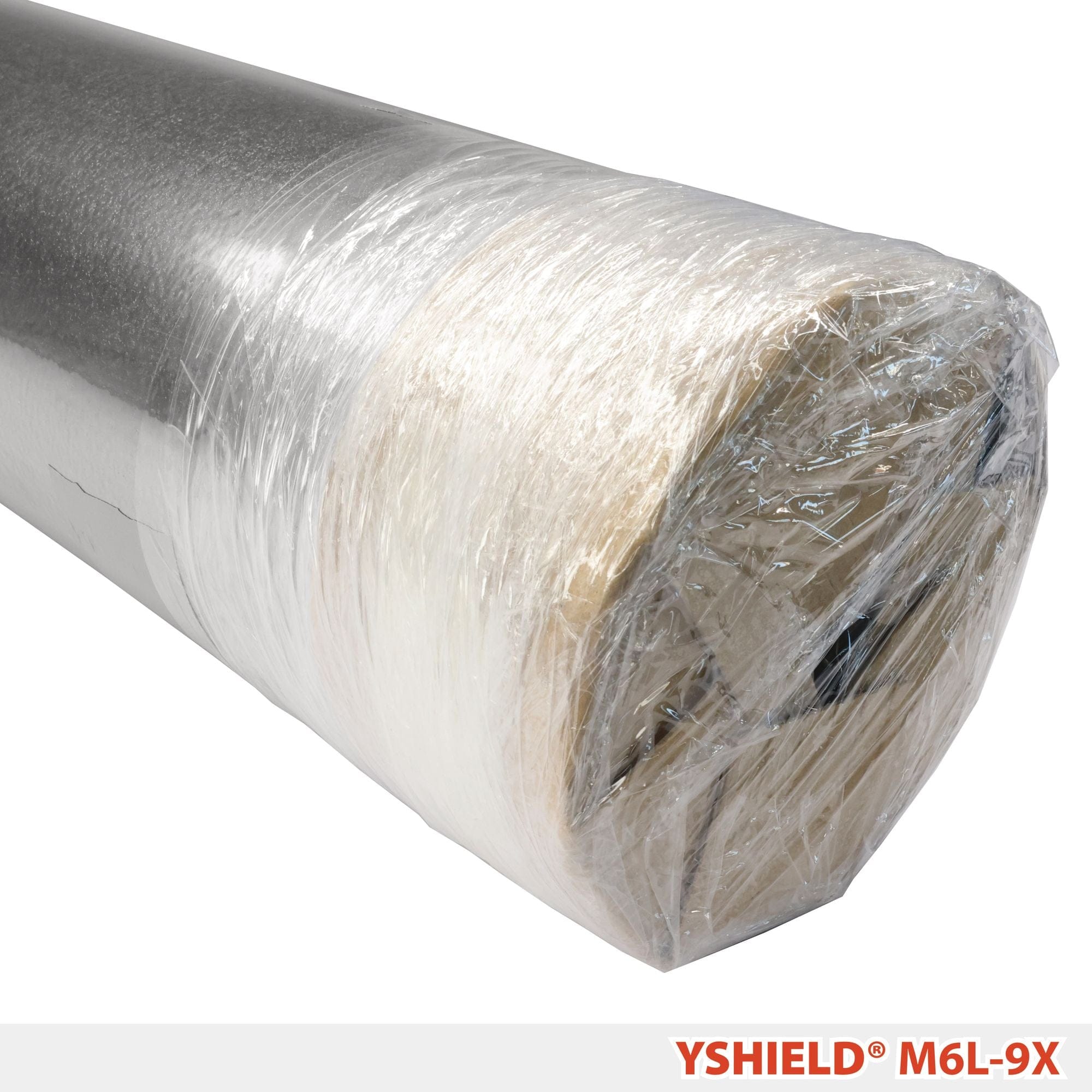

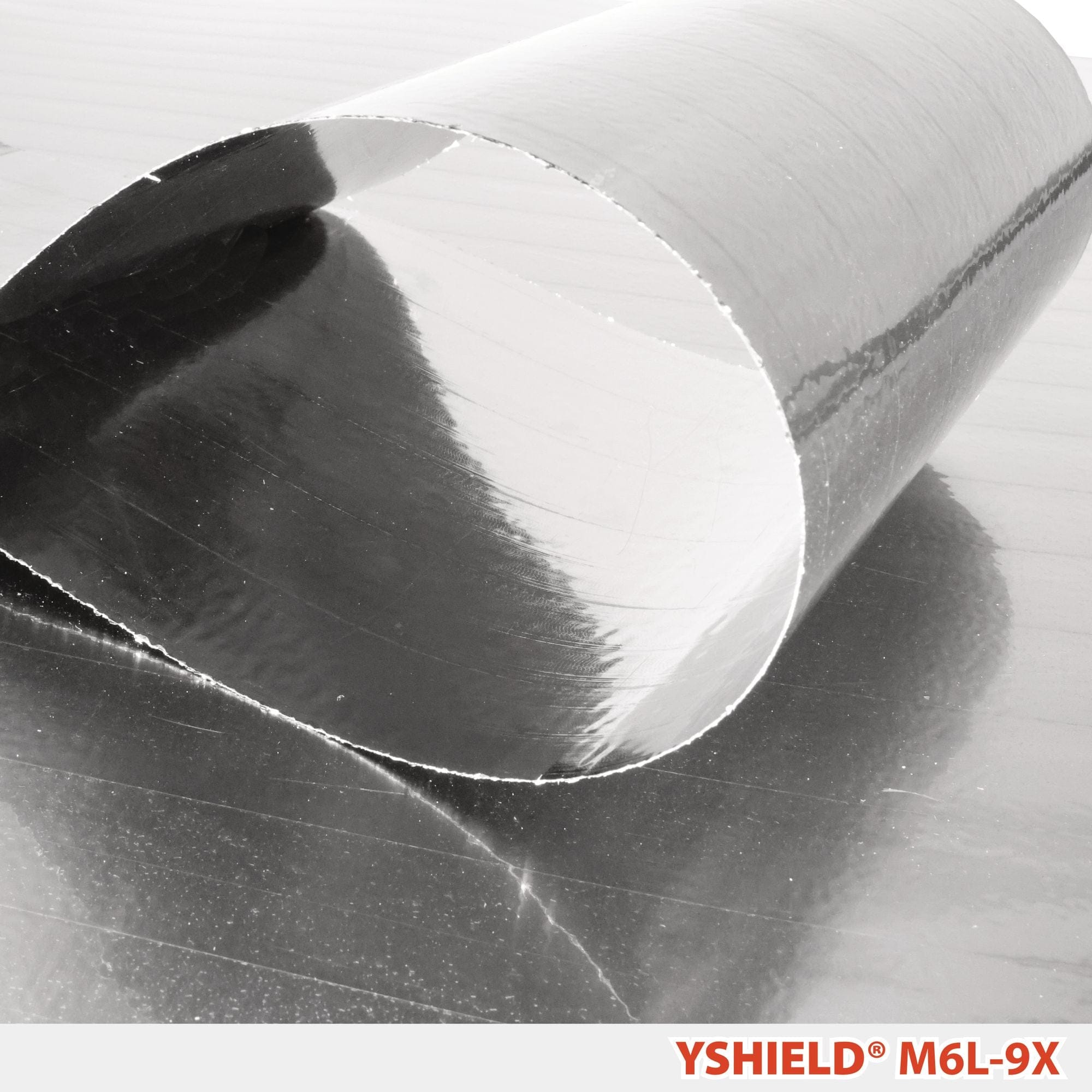

YSHIELD® M6L-9X | Six-layer magnetic field shielding film laminated | Width 90 cm | 1 Meter

$192.00
Unit price per

Tax included. Shipping calculated at checkout.

Product Overview

The YSHIELD® M6L-9X is a professional-grade six-layer magnetic field shielding film designed to protect against low-frequency magnetic fields. This highly resistant laminated construction offers superior performance compared to single thick sheets, making it ideal for residential, commercial, industrial, and vehicle applications.

*This product may incur a lead time. Please, contact us for more information.

Safety! - This product is very sharp once cut; cut resitant safety gloves must be worn when handling.

Key Features

Six thin shielding layers engineered for maximum effectiveness
Durable laminated construction with protection on both surfaces
Suitable for intermediate installation in roof and floor systems
Versatile application for domestic, construction, industrial, and automotive use
Easy to cut with quality scissors for custom fitting
High initial permeability and high saturation induction from 5 Hz

Technical Specifications

Dimensions

Width: 90 cm (shielding surface), 94 cm total width
Length: Sold per linear meter or in 18-meter rolls
Thickness: 1 mm
Minimum Bending Radius: 20 cm
If ordering more than 1 meter, please note the product will not be cut to individual meters unless requested.

Shielding Performance (50 Hz)

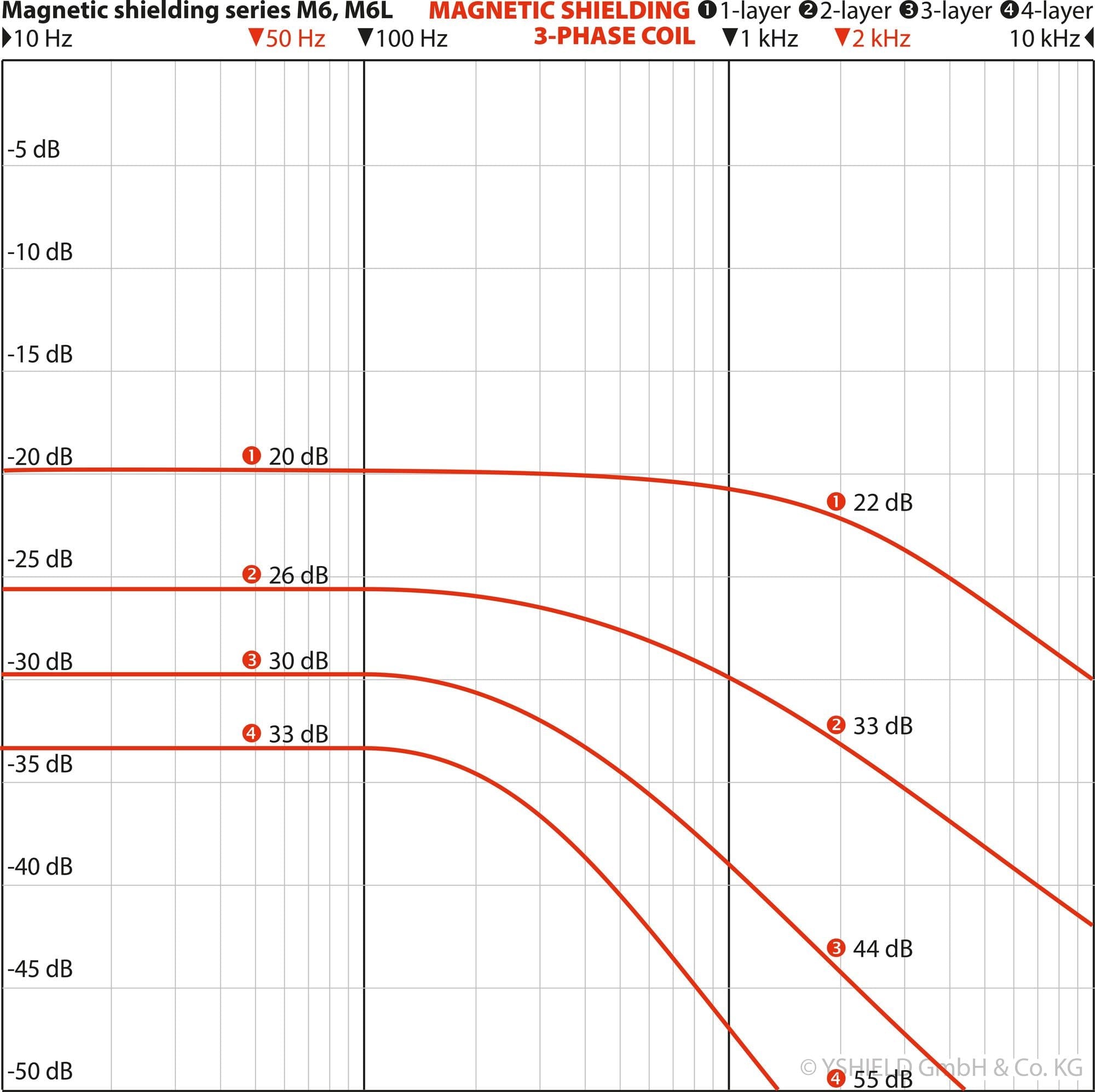

Three-Phase Systems:

Single-layer: 19.5 dB (89.4% reduction)
Two-layer: 25.7 dB (94.8% reduction)
Three-layer: 30.2 dB (96.9% reduction)

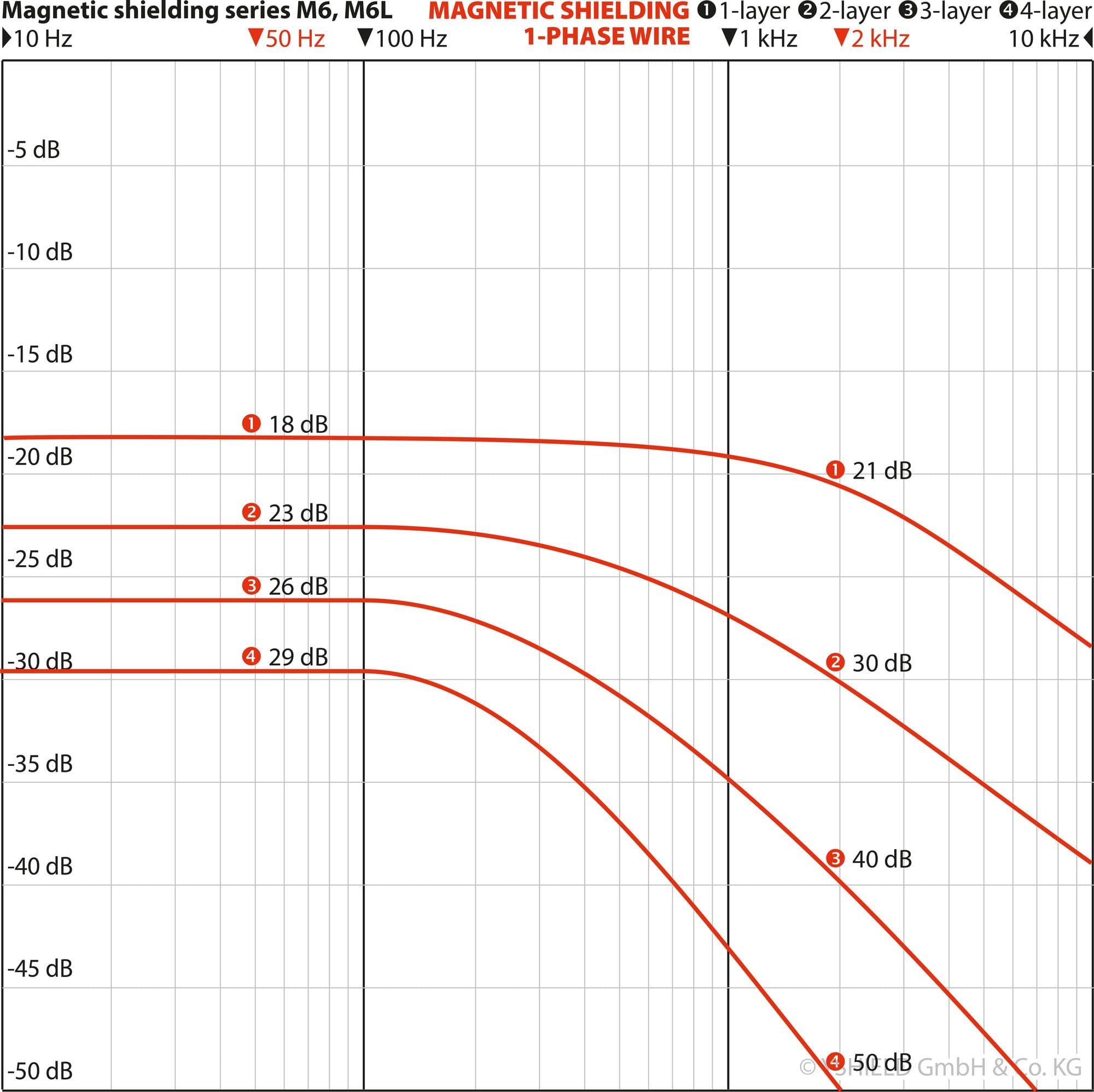

Single-Phase Systems:

Single-layer: 17.7 dB (87% reduction)
Two-layer: 23.2 dB (93.1% reduction)

Static Field Shielding:

Single-layer: 15% reduction
Four-layer: Up to 58% reduction

Installation Methods

The M6L-9X can be installed using multiple methods depending on your substrate:

Adhesive Bonding: Use acrylate-based PSA adhesive for permanent installation
Mechanical Fixing: Stapling or nailing for appropriate substrates

Important: Sharp edges created during cutting require immediate protection to maintain the integrity of the laminated surface.

Applications

Residential magnetic field protection
Commercial building installations
Industrial shielding solutions
Vehicle electromagnetic protection
Roof and floor system integration
Intermediate construction layer shielding

Material Properties

The YSHIELD® M6L-9X features proprietary material composition with high initial permeability and high saturation induction starting from 5 Hz, ensuring effective shielding across a wide frequency range of low frequency magnetic fields.

Technical Documents:

Product Data Sheet: https://www.yshield.com/en/artikel_pdf/item/804/variation/1855/

Laboratory Report (Attenuation): https://www.yshield.de/pdf/db/YSHIELD-M6L-DB.pdf

Expert Report (Attenuation): https://www.yshield.de/pdf/db/EXPERTREPORT-YSHIELD-M6L.pdf
