Y-Shield A300-HEMP EMF Shielding Material - Military Grade

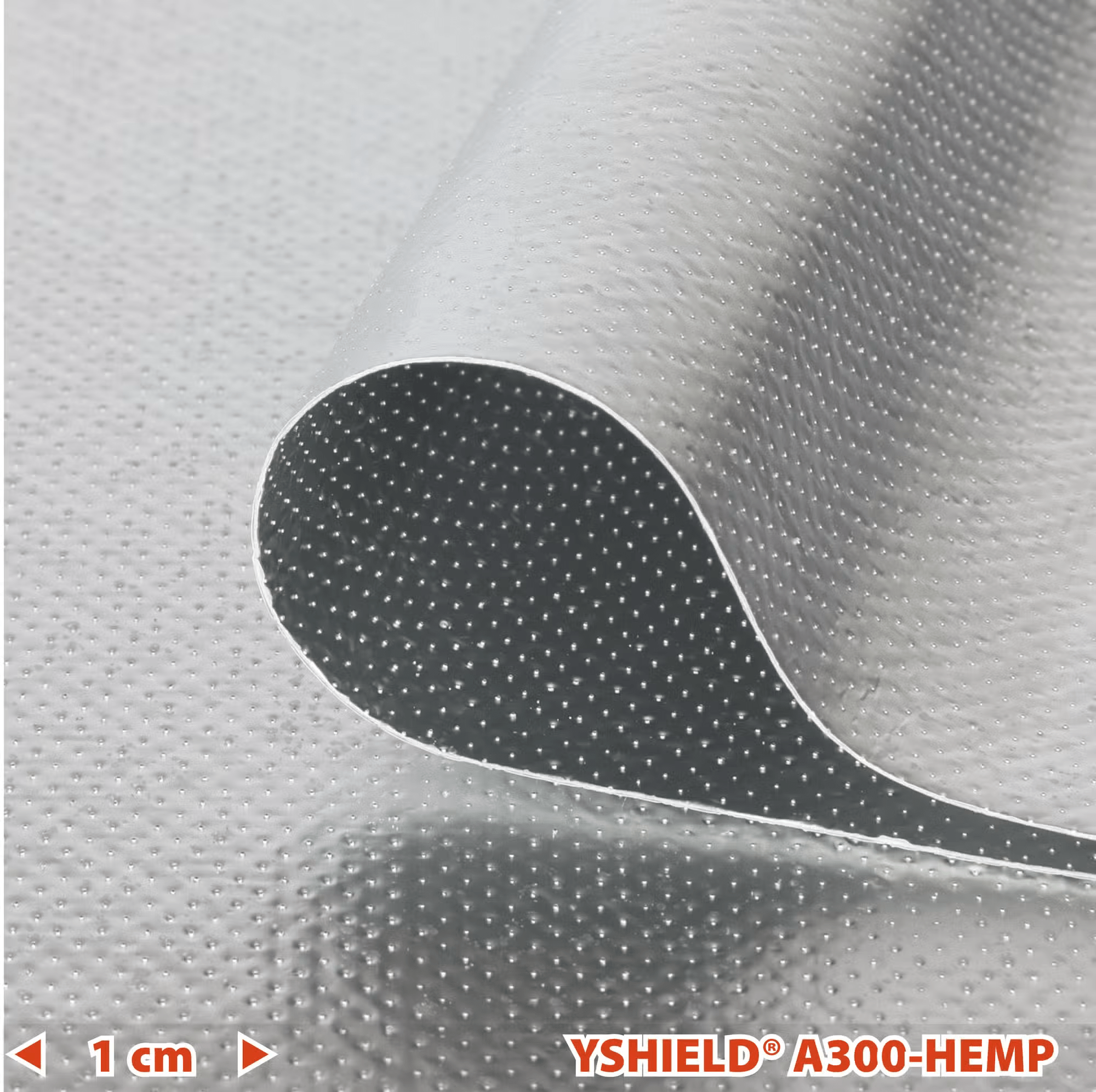

Double-Laminated Aluminium Shielding Fleece - Military Grade
High-performance electromagnetic shielding material designed to meet military standard MIL-STD-188-125. Features double-laminated aluminium construction with micro-needled perforations for breathability.
Product Specifications
- Width: 90 cm
- Length: Sold by the meter (minimum 1m increments)

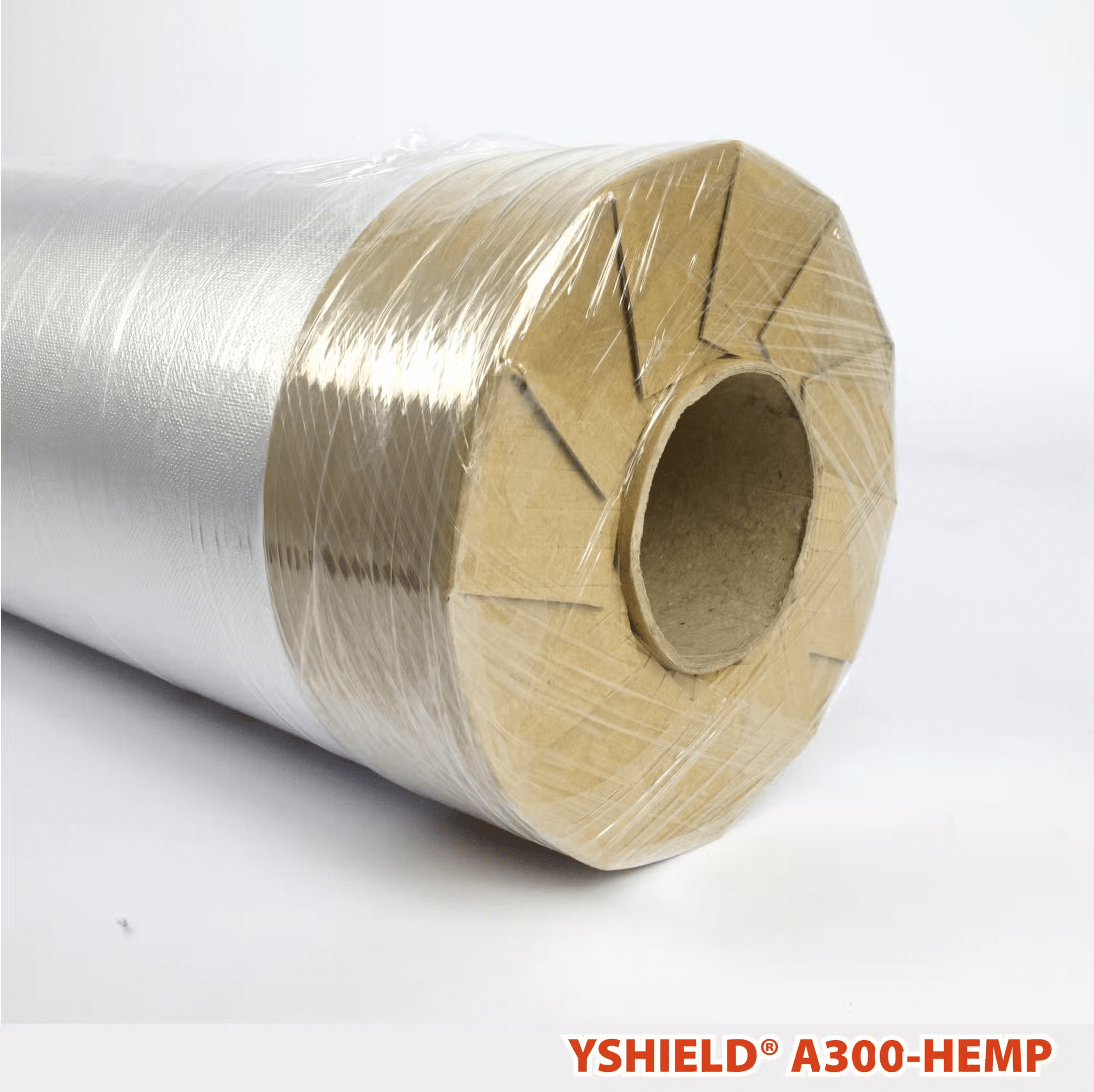

- Bulk Option: 50m rolls available (50m increments)
- Surface Weight: 300 g/m²
- Thickness: 0.4 mm
- Weight per meter: 300g
Shielding Performance
- Shielding Attenuation: 123 dB
- Frequency Range: Effective from 1 kHz to 40 GHz
- Standard Compliance: MIL-STD-188-125 (military electromagnetic pulse protection)
- Test Method: ASTM D4935-10
Physical Properties
- Colour: Silver/Silver
- Tear Resistance: 4,400 N/m (transverse), 6,800 N/m (longitudinal)
- Water Vapour Permeability: sd value 0.024m (highly permeable)
- Perforations: 4,000,000 micro-holes per square meter
Materials & Construction
Core Materials
- Aluminium: Double-laminated micro-needled foil layers
- Substrate: Cellulose fleece (FSC & EUTR certified)
- Fibres: Polyester (OEKO-TEX® certified)
- Adhesive: OEKO-TEX® certified powder adhesive
Unique Features
- Redundant Protection: Two aluminium layers provide backup shielding
- Breathable Design: Micro-perforations allow water vapour passage without compromising shielding
- Corrosion Resistance: Aluminium-grade corrosion protection
- German Manufacturing: Produced in-house in Germany
Applications
Professional Use
- Critical infrastructure protection
- Military-grade electromagnetic pulse (HEMP) protection
- Data centres and secure facilities
- Research laboratories
Installation Requirements
- Two-Layer Installation: Required for full MIL-STD-188-125 compliance
- Single-Layer Option: Sufficient for non-magnetic frequency applications
- Grounding Required: Must be integrated into functional equipotential bonding (FEB)
Installation Specifications
Surface Preparation
- Absorbent/chalky surfaces require GK5 primer pre-treatment
- Contact materials must maintain pH 4-9 (neutral range)
Bonding Requirements
- Recommended Adhesive: PSA pressure-sensitive adhesive
- Overlap: 5cm overlap required between sheets
- Edge Sealing: Use HNX50 or HNX100 shielding tape for edges
Grounding
Important: Electrically conductive surface requires integration into functional equipotential bonding system. Grounding accessories available separately.
Technical Certifications
Laboratory Testing
- EMCC DR. RASEK: Accredited laboratory certification
- In-House Testing: Daily batch verification
- Independent Verification: Third-party expert validation
- Frequency Coverage: Tested up to 40 GHz
Standards Compliance
- MIL-STD-188-125: Military electromagnetic pulse protection
- ASTM D4935-10: Standard test method for electromagnetic shielding
- OEKO-TEX®: Textile safety certification
- FSC/EUTR: Sustainable forestry certification
Product Information
Ordering Details
- Minimum Order: 1 running meter
- Increment: 1 meter steps
- Roll Orders: 50m increments (whole rolls)
- Custom Cutting: Cut to customer requirements
- Returns: No returns on custom-cut material (sample available)
Documentation Available
Technical Reports:
- Expert Report HEMP (MIL-STD-188-125): https://www.yshield.de/pdf/emcc/EMCC-240185AB.pdf
- Laboratory Attenuation Report (ASTM D4935-10): https://www.yshield.de/pdf/db/YSHIELD-A300-HEMP-DB.pdf
- Independent Expert Attenuation Report: https://www.yshield.de/pdf/db/EXPERTREPORT-YSHIELD-A300HEMP.pdf
Installation Guides & Accessories:
- Professional Installation Guidelines: https://www.yshield.com/en/faq_777_1800/ (Help: Shielding attenuation of web edges)
- Grounding Requirements: https://www.yshield.com/en/grounding/
Required Accessories (Sold Separately) Under YSHIELD in brands on our home page.
Installation Materials
- PSA Pressure Sensitive Adhesive (1L or 5L)
- GK5 Primer (for absorbent surfaces)
- HNX50/HNX100 Shielding Tape (edge sealing)
Grounding Components
- GSX50 Grounding Strap (25mm width, 50m roll)
- Grounding connectors and hardware
Important Notes
- Professional installation recommended for military-grade applications
- Material requires proper grounding for optimal performance
- Sample testing available before large orders
- Custom cutting available - no returns on cut material
Note: This is a professional-grade EMF shielding material intended for technical applications. Proper installation and grounding are essential for effective performance. Consider requesting a sample before placing large orders. Samples start at 1 meter x 90 cm
