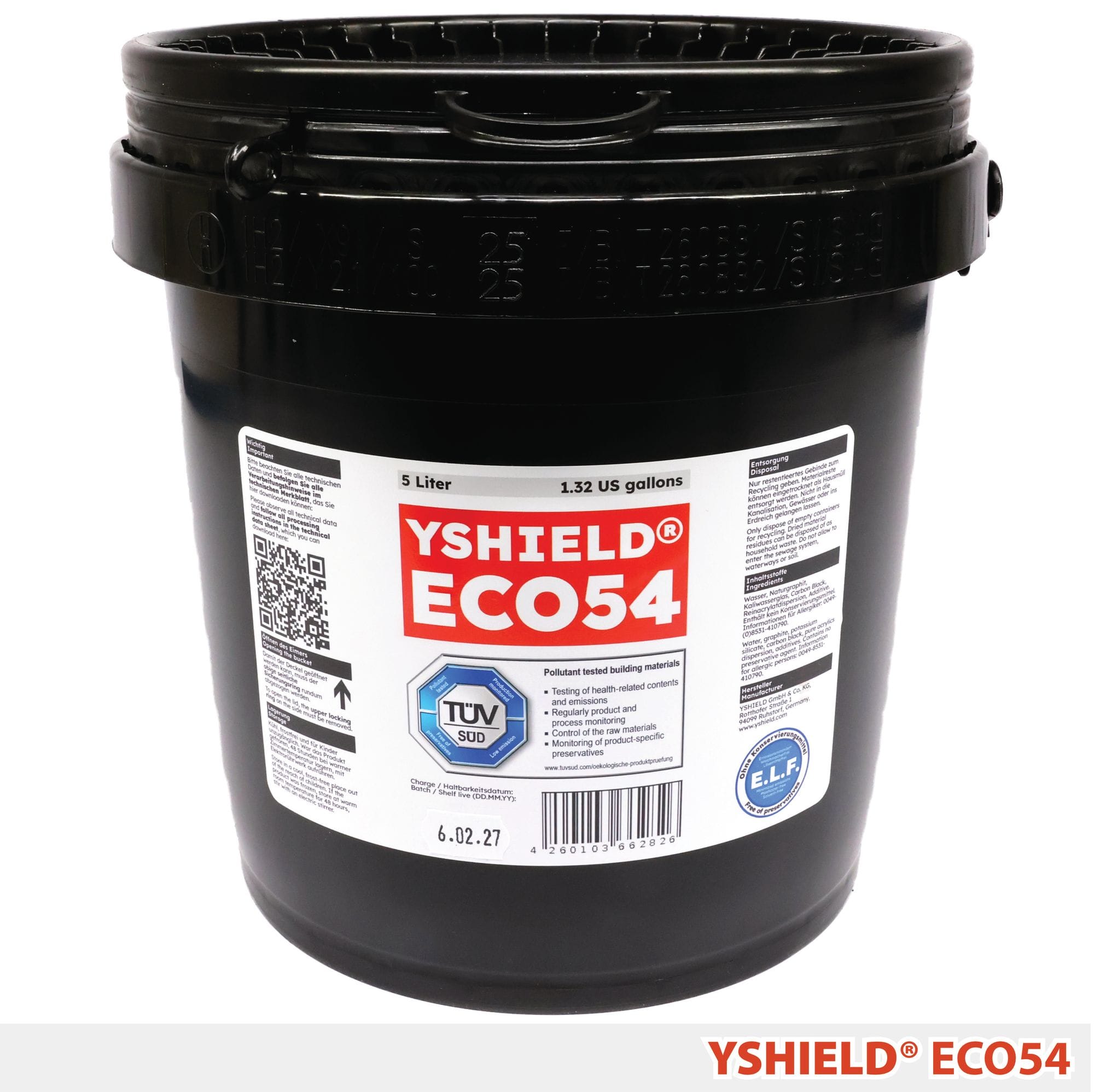

YSHIELD® ECO54 Ecological Shielding Paint - 5 Liter
Preservative-Free Ecological Shielding Paint
YSHIELD® ECO54 represents a breakthrough in eco-conscious EMF protection. This minimalist, preservative-free shielding paint delivers professional-grade electromagnetic field protection without compromising environmental or health standards. Designed specifically for interior applications, ECO54 combines effective shielding with an ecological formula that's as safe as it is powerful.
Why Choose ECO54?
ECO54 is the ideal choice for health-conscious individuals and professionals who refuse to compromise between effective EMF shielding and environmental responsibility. With its coarse 80 µm pigment size and dispersion silicate composition, this paint adheres exceptionally well to challenging substrates while maintaining low acrylic content. Applied easily with a standard paint roller, it's the perfect solution for those prioritising a preservative-free environment.
Technical Specifications
Container Size: 5 liters
Coverage: 4-8 m² per liter (application dependent)
Pigment Size: 80 µm
Application Method: Paint roller
Recommended Use: Interior walls, ceilings, and floors
Film Characteristics: Soft film formation
Product Weight: 7 kg
Country of Origin: Germany
Shielding Performance

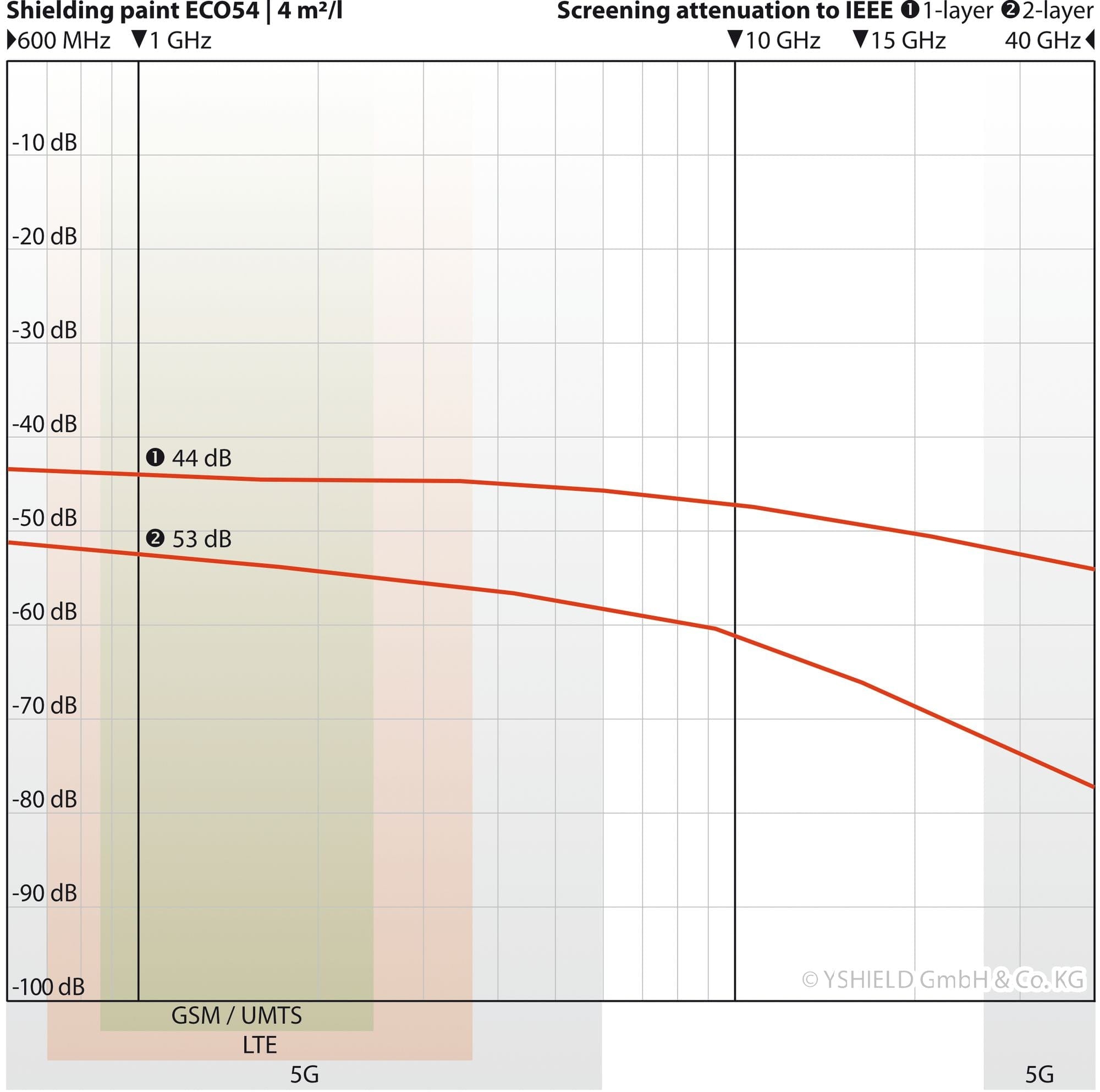

Thick Coat Application (4 m²/liter):
Single layer: 44 dB attenuation
Double layer: 53 dB attenuation

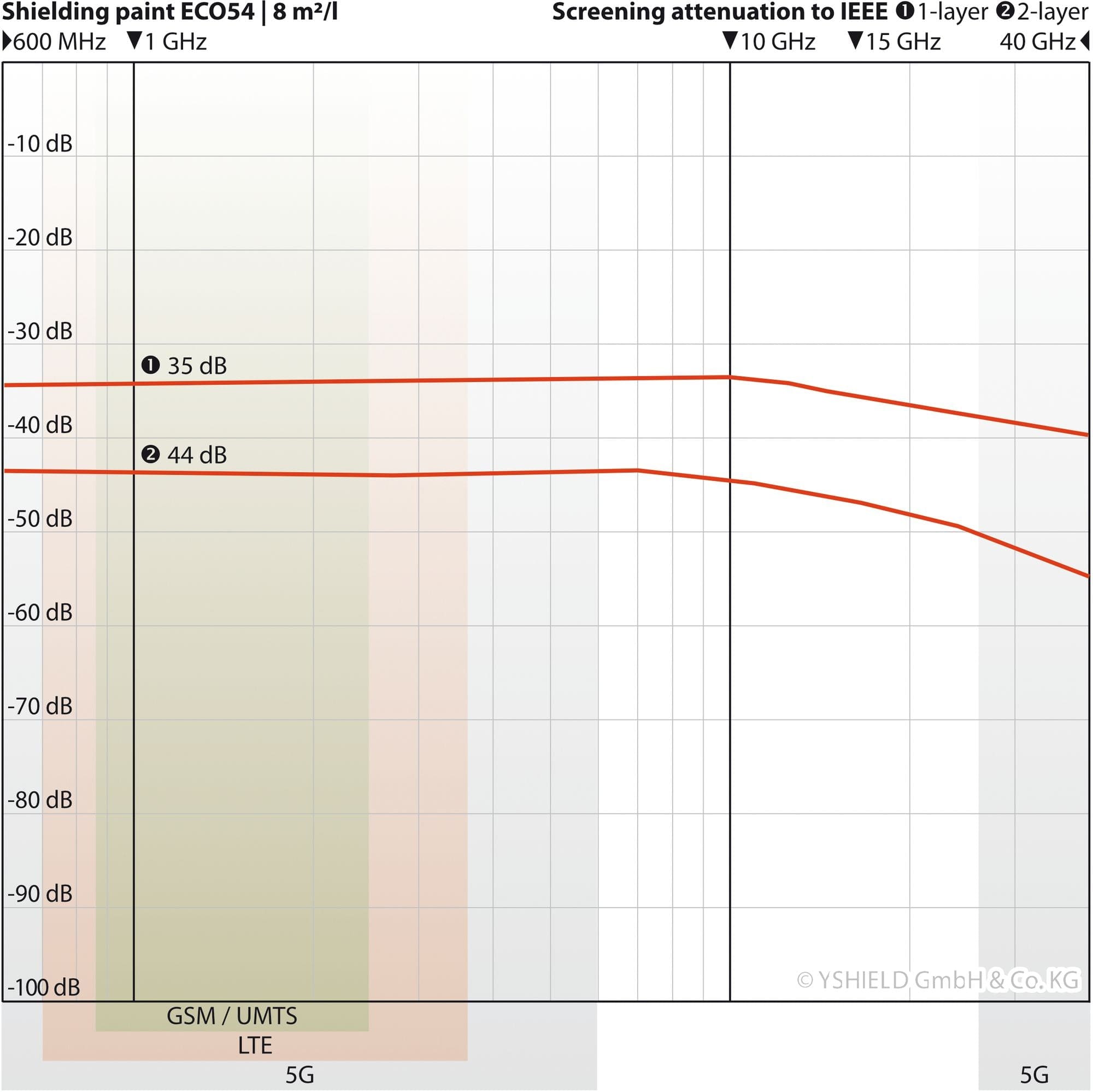

Thin Coat Application (8 m²/liter):
Single layer: 35 dB attenuation
Double layer: 44 dB attenuation
Tested from 600 MHz to 40 GHz according to IEEE Std 299-2006 standard. All attenuation values were measured at 1 GHz for accurate real-world performance assessment.
Dual-Spectrum Protection
High-Frequency (HF) Shielding: Blocks electromagnetic fields from wireless devices, cell towers, and RF sources across the entire spectrum from 600 MHz to 40 GHz.
Low-Frequency (LF) Shielding: The electrically conductive surface effectively shields against alternating electric fields from power lines and electrical installations.
5G Protection Built-In
ECO54 provides comprehensive protection against all 5G frequencies without requiring special formulation. Full coverage across FR1 spectrum (600 MHz - 6 GHz) and FR2 spectrum (24 GHz - 40 GHz). Unlike competitors offering "special" 5G products, ECO54 has always delivered complete 5G protection as standard.
TÜV-SÜD Certified Excellence
Every YSHIELD shielding paint undergoes rigorous TÜV-SÜD monitoring under the TM-09 standard, which tests for health-related ingredients, emissions, and manufacturing processes. This independent certification confirms ECO54 is:
✓ Free of preservatives
✓ Free of VOC emissions
✓ Free of SVOC plasticisers
Grounding
This product with an electrically conductive surface has to be integrated into the functional equipotential bonding (FEB). Please find suitable grounding accessories under "Grounding".
Laboratory & expert report of shielding attenuation up to 40 GHz
Yshield have invested in its own professional EMV laboratory. They not only use it to create laboratory screening reports but also to check each batch daily. Additionally, they have all products checked by an independent, well-respected expert. Yshield is double-checked for twice the safety!
PDF: Certificate TÜV-SÜD - TM-09
PDF: Laboratory report attenuation - IEEE Std 299™-2006
PDF: Expert report attenuation 4 sqm/l - IEEE Std 299™-2006
PDF: Expert report attenuation 8 sqm/l - IEEE Std 299™-2006
PDF: Technical data sheet
Please print out for the construction site, as no longer available on the container!
