YSHIELD® V4A03 Stainless Steel Mesh - 55 dB EMF Shielding | Width 90 cm

$25.66
Unit price per

Tax included. Shipping calculated at checkout.

Premium Stainless Steel Mesh for Maximum EMF Shielding

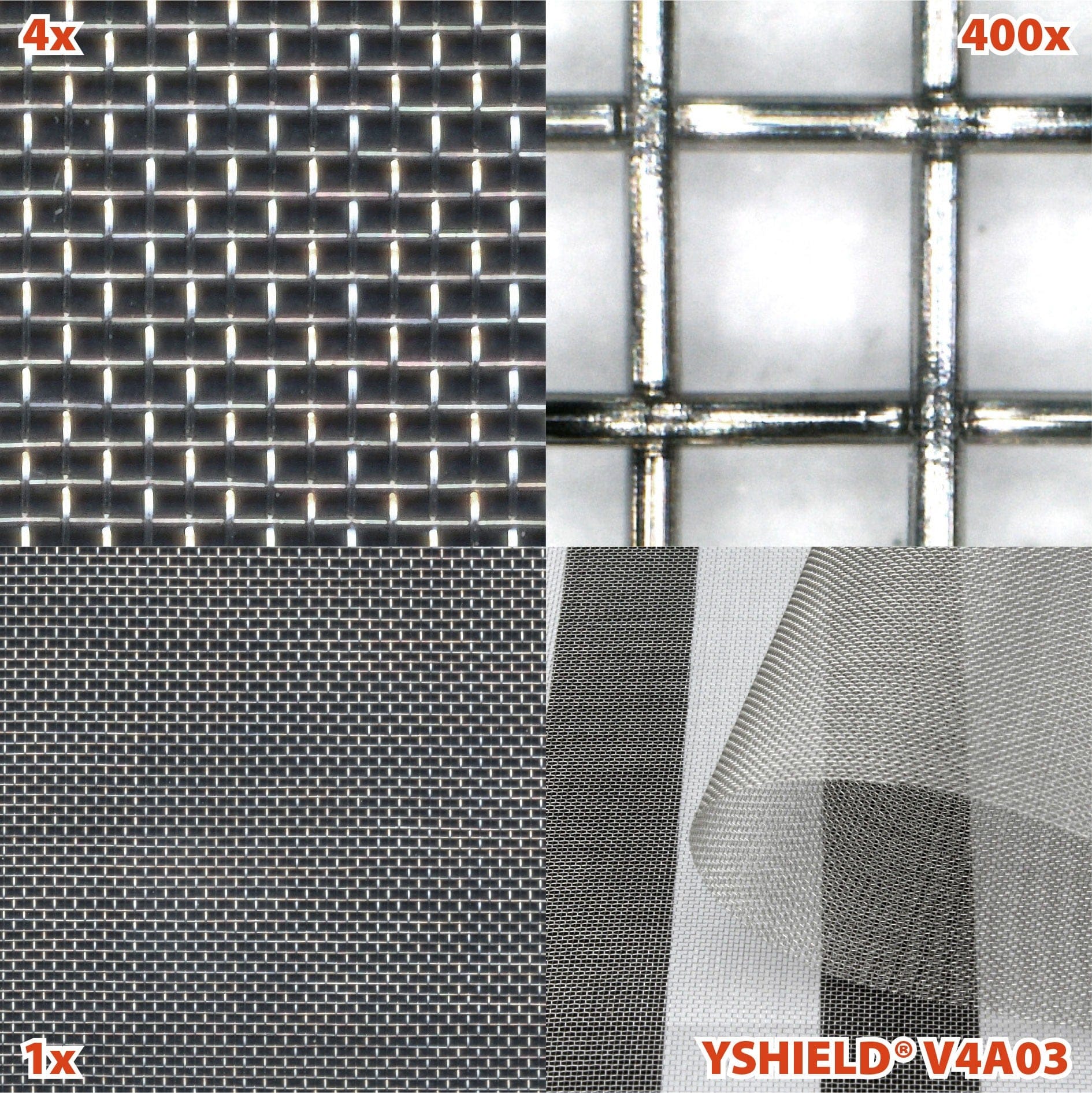

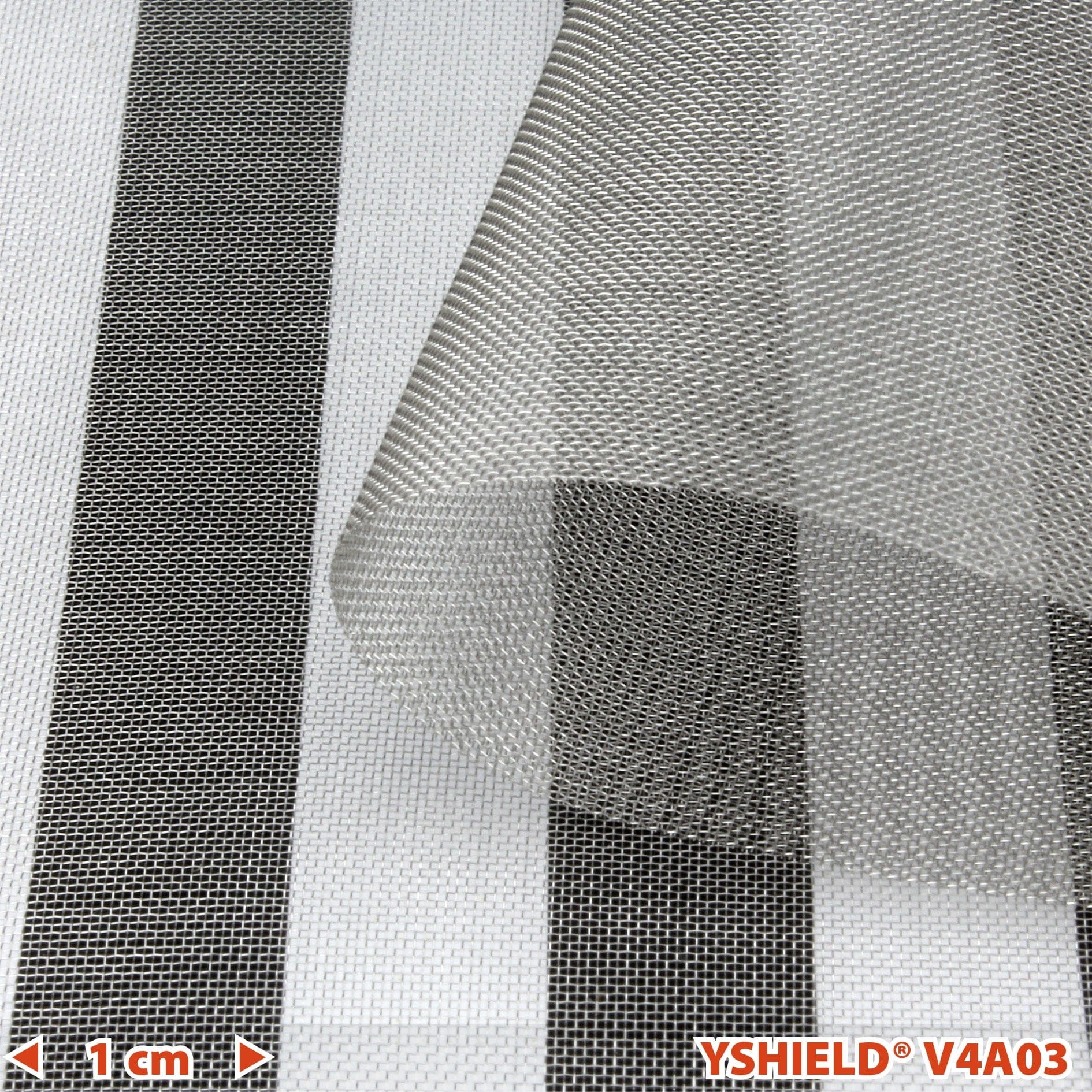

The YSHIELD® V4A03 is an extremely fine woven, non-corrosive stainless steel mesh designed for superior protection against high-frequency radiation (HF) and low-frequency electric fields (LF). Made from corrosion-resistant V4A (AISI 316) stainless steel, this mesh provides exceptional 55 dB shielding attenuation and is resistant to water, humidity, mild acids, and even salty seawater in coastal areas.

Key Features

Width: 90 cm
Shielding Attenuation: 55 dB
Mesh Width: 0.3 mm
Wire Diameter: 0.08 mm
Weight: 200 g/m²
Color: Silver
Fire Rating: A1 according to DIN 4102:1994
Surface Conductivity: 0.03 Ohm

Applications

Perfect for multiple applications including:

Flyscreen: The thin filaments make it ideal for use as a high-performance flyscreen in standard tenter frames

Drywall Construction: Excellent for integrating into wall systems for EMF protection

Roof Areas: Suitable for roofing applications requiring electromagnetic shielding

Floor Installation: Can be installed under laminate, parquet, PVC, and other floor coverings

Superior Shielding Performance

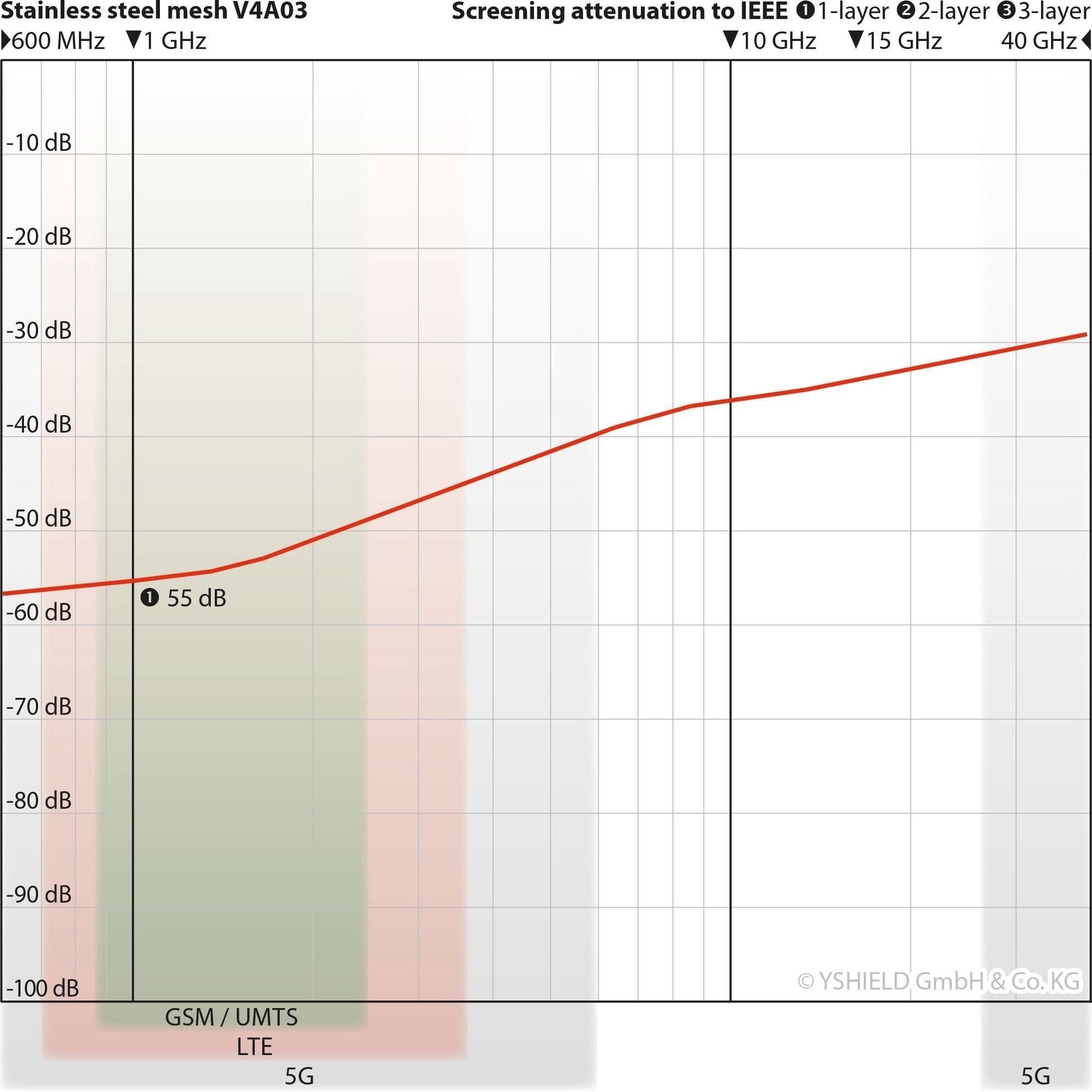

This product shields both high-frequency electromagnetic fields (HF) and low-frequency alternating electric fields (LF). The indicated dB values apply to 1 GHz, with measurements from 600 MHz to 40 GHz according to ASTM D4935-10 and IEEE Std 299-2006 standards.

5G Ready: Provides complete protection across all 5G frequency spectrums including FR1 (600 MHz – 6 GHz) and FR2 (24 GHz – 40 GHz).

Installation Guidelines

Single mesh elements should overlap by at least 5 cm. The mesh can be bolted or stapled together for drywall and roof installations. For grounding applications, use perforated stainless steel tape GSS25 by screwing it across elements into the surface. This electrically conductive product must be integrated into functional-equipotential bonding (FEB).

Quality Assurance

Every batch is tested in YSHIELD's professional EMV laboratory and verified by independent experts for double-checked safety and reliability.

Technical Documentation

Download Laboratory Report - Attenuation (PDF)

Download Expert Report - Attenuation (PDF)

Ordering Information

Available by the meter with a minimum order of 1 running meter in 0.1 meter increments. Material is cut to your specifications. We recommend requesting a sample before placing your order.
