Mission Darkness™ CYPHERCYLENT Faraday Capsule

Product Overview

The Mission Darkness CYPHERCYLENT Faraday Capsule is a portable tabletop RF-shielded enclosure measuring 0.61 m × 0.61 m × 0.61 m internally — a benchtop format engineered for digital forensics, EMI testing, secure communications and sensitive device containment. Built from multiple layers of TitanRF Faraday Fabric and TitanRF Faraday Tape with a stitch-free non-pierced design, the capsule delivers lab-certified shielding that blocks Wi-Fi, Bluetooth, cellular (including 5G), GPS, RFID, NFC and radio signals from low MHz to 40 GHz.

Active ventilation is provided by two shielded honeycomb air vents and two multi-speed Noctua fans, while a 6 ft LED rope light illuminates the interior workspace. A patent-pending RFMagLink magnetic door system maintains a tight RF seal and a CE-certified shielded multiport filter (1 × AC power, 1 × RJ45 ethernet, 2 × USB A 2.0) supports clean signal pass-through for connected workflows.

Please note: This product is made to order with a 5–6 week lead time. Contact us before purchasing if you require special sizing, additional shielded filters or an EMP surge arrester power filter.

Key Features

• Two layers of high-shielding TitanRF Faraday Fabric and TitanRF Faraday Tape — lab tested to MIL-STD-188-125 and IEEE 299-2006
• Stitch-free, non-pierced tent construction reduces tearing risk compared with stitched-seam covers
• Blocks Wi-Fi (2.4 & 5 GHz), Bluetooth, cellular signals (including 5G), GPS, RFID, NFC and radio signals from low MHz to 40 GHz
• EMI, EMR and EMF radiation shielding

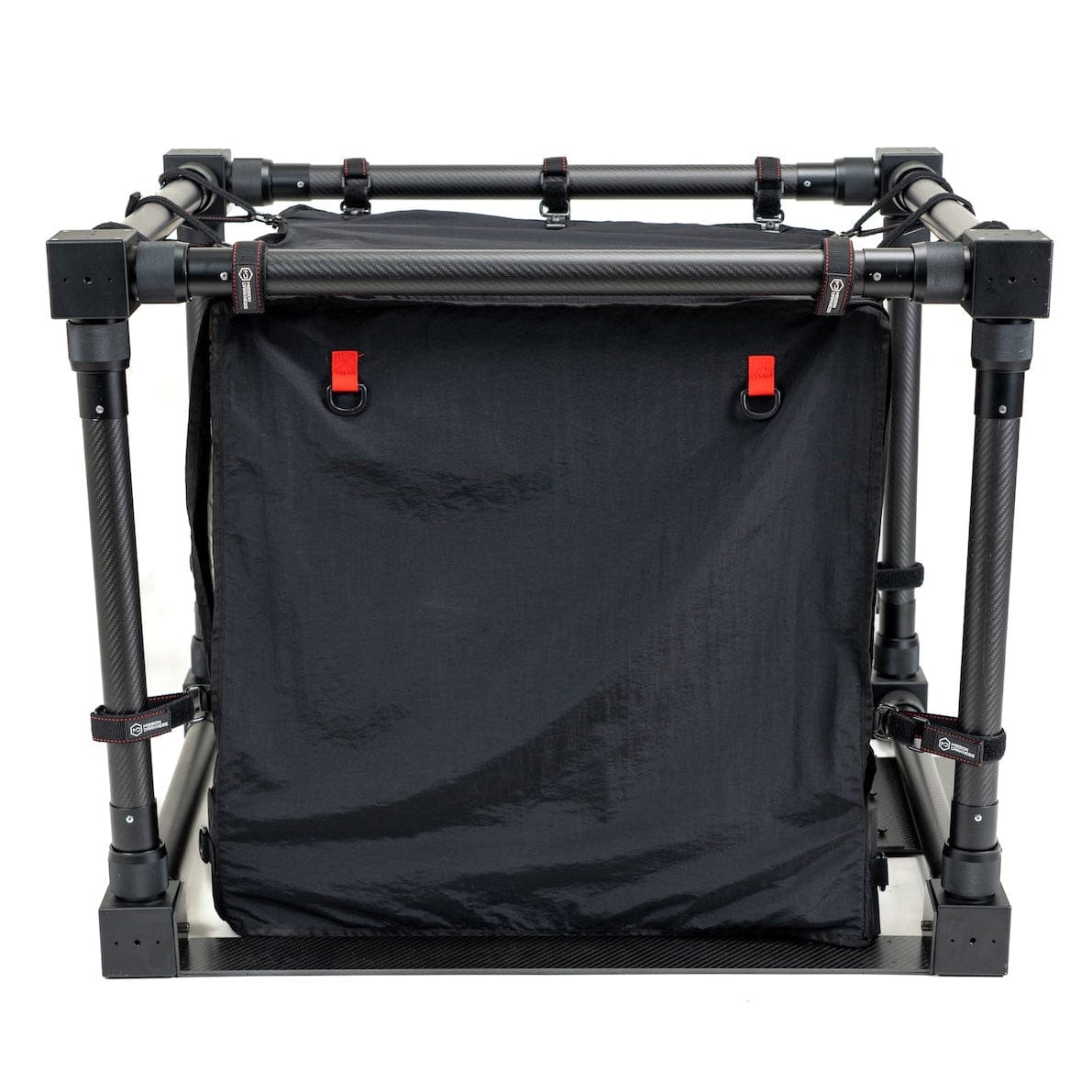

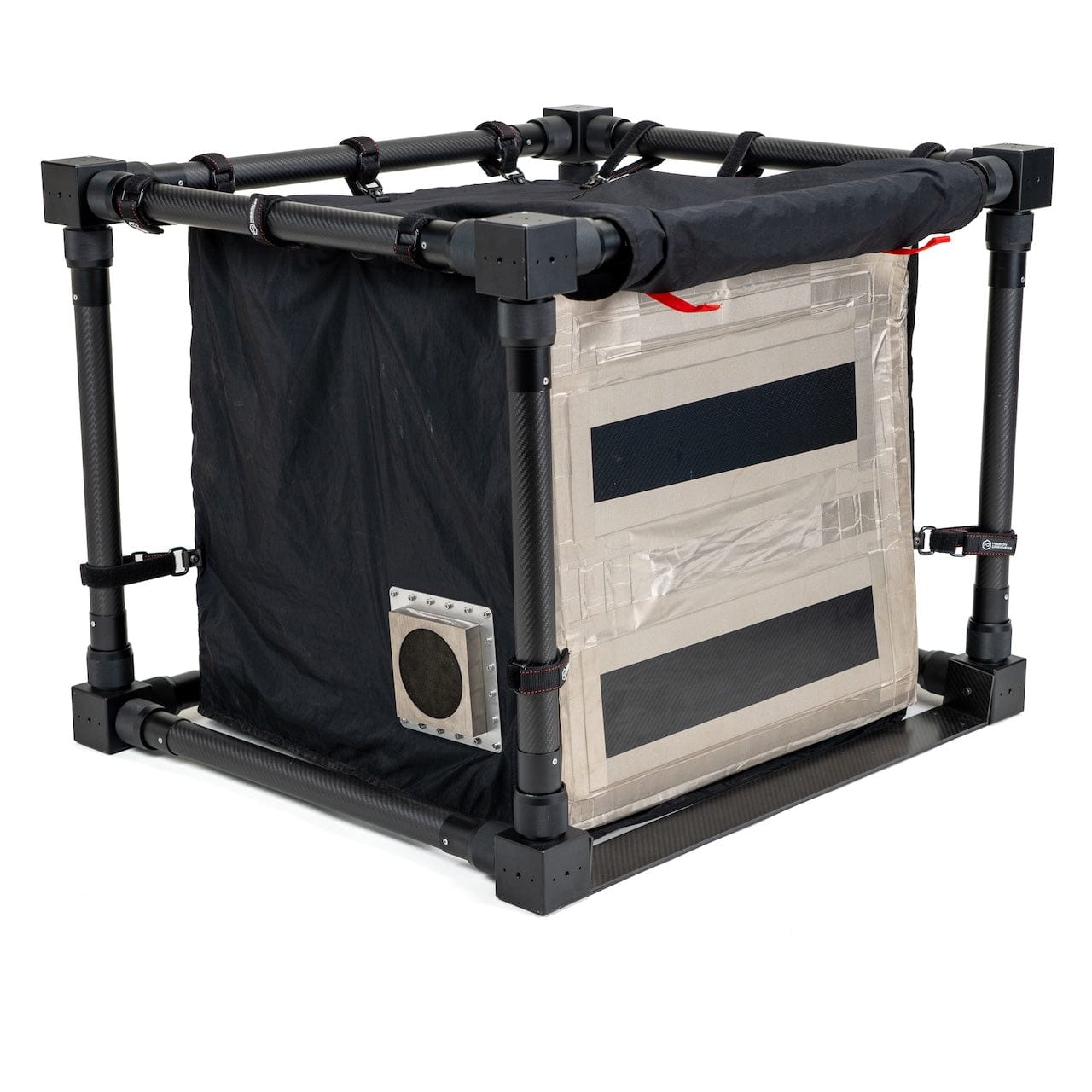

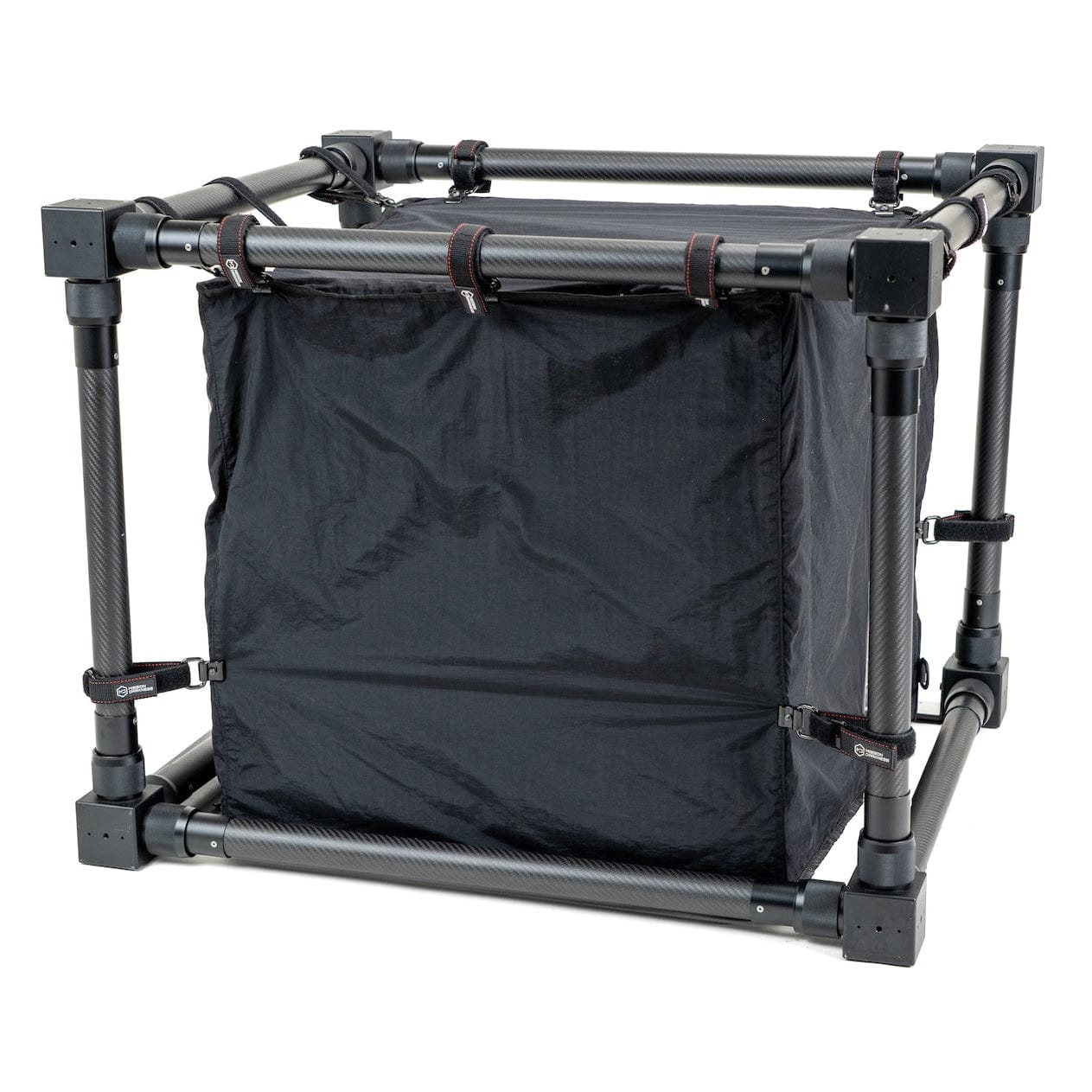

• Lightweight carbon fibre tent frame with patent-pending modular aluminium corner joints — assembles without tools

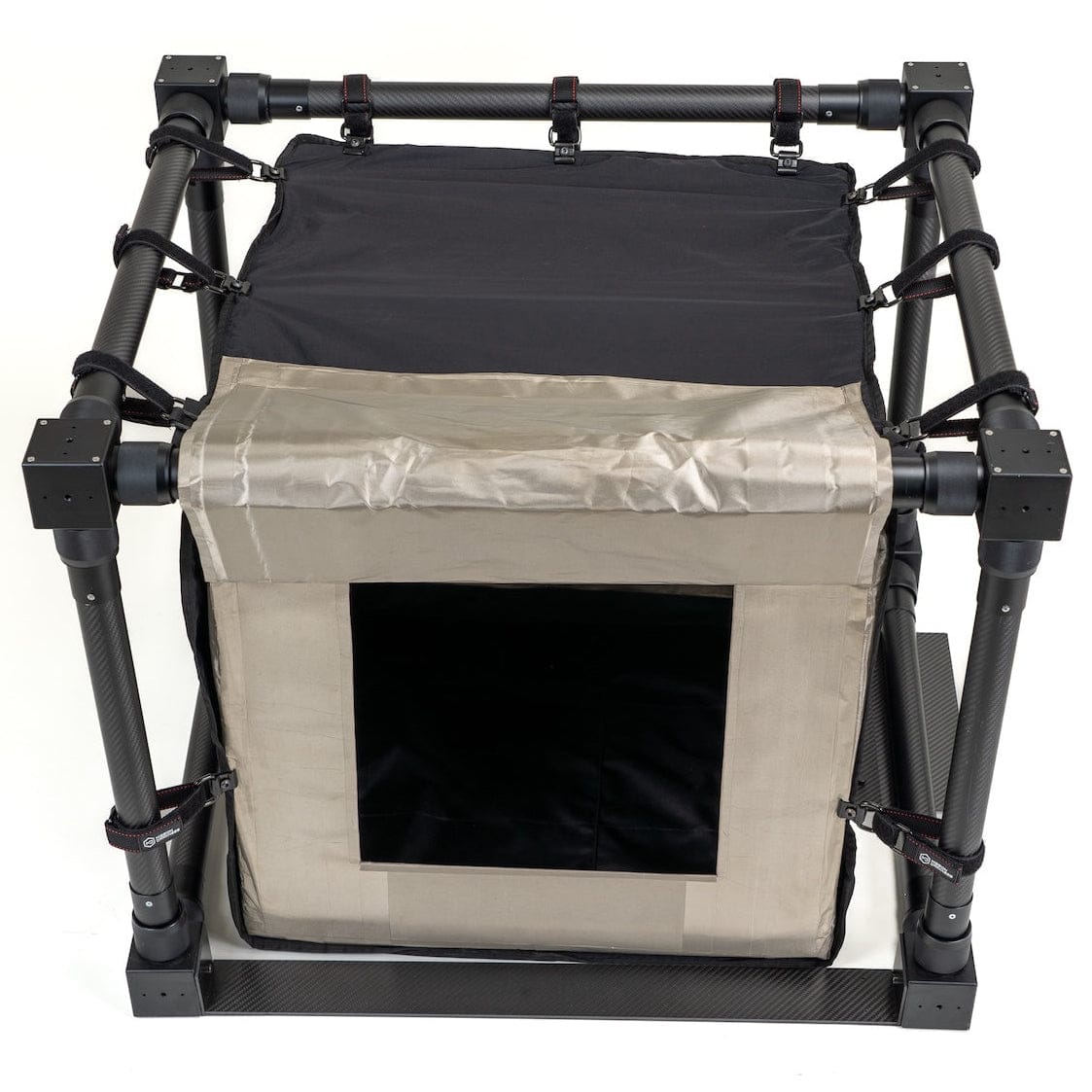

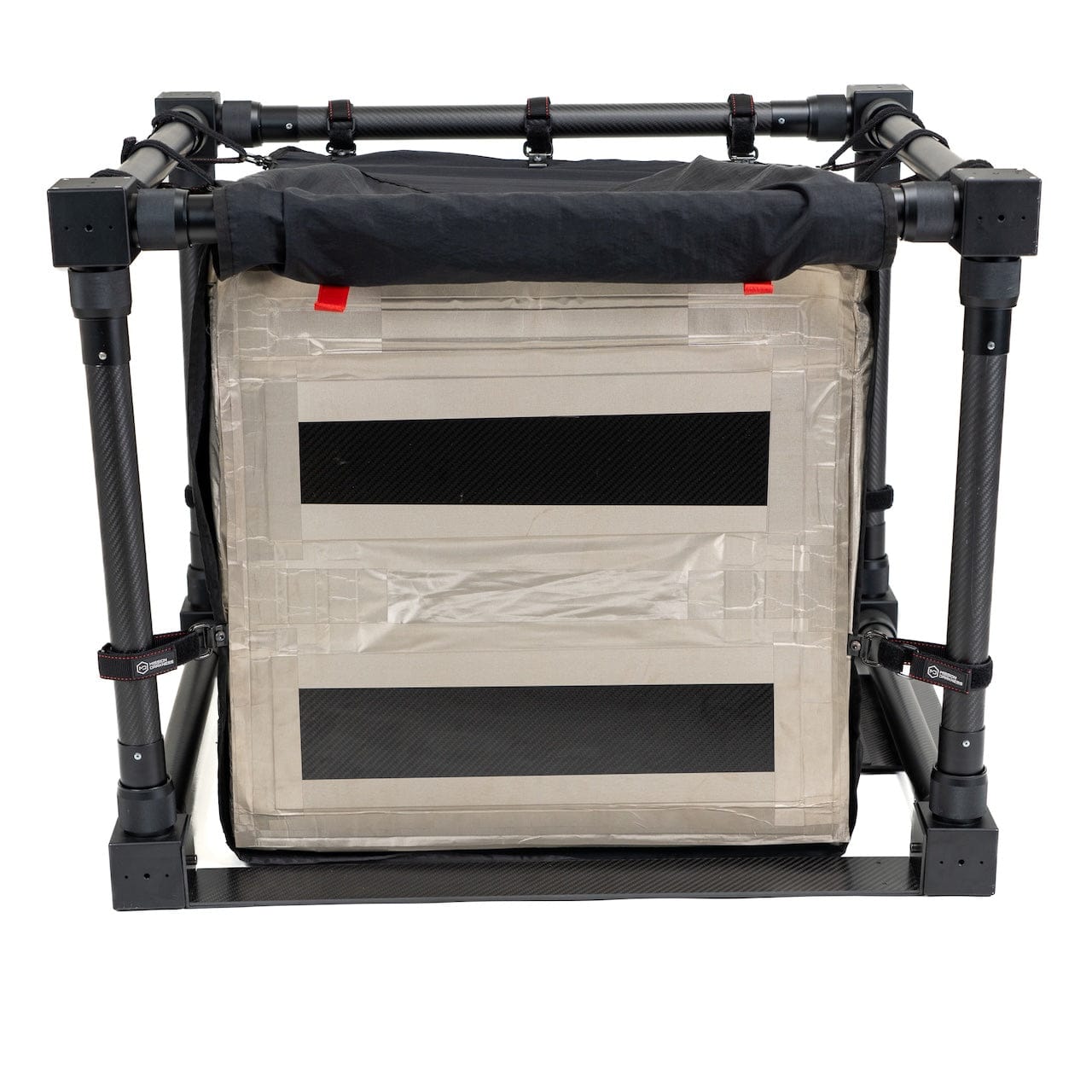

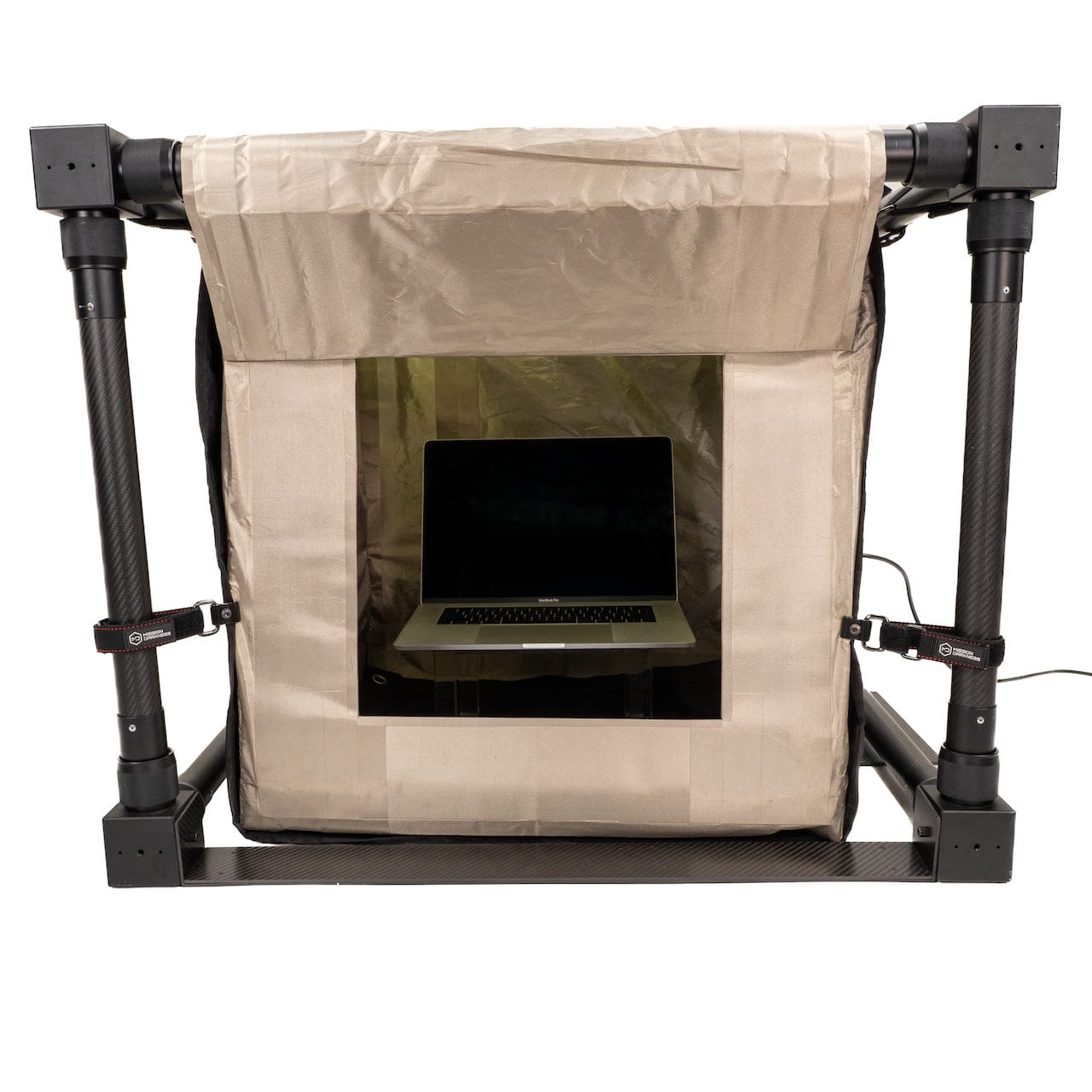

• Patent-pending RFMagLink magnetic door system with carbon fibre door panel stiffeners for a tight RF seal

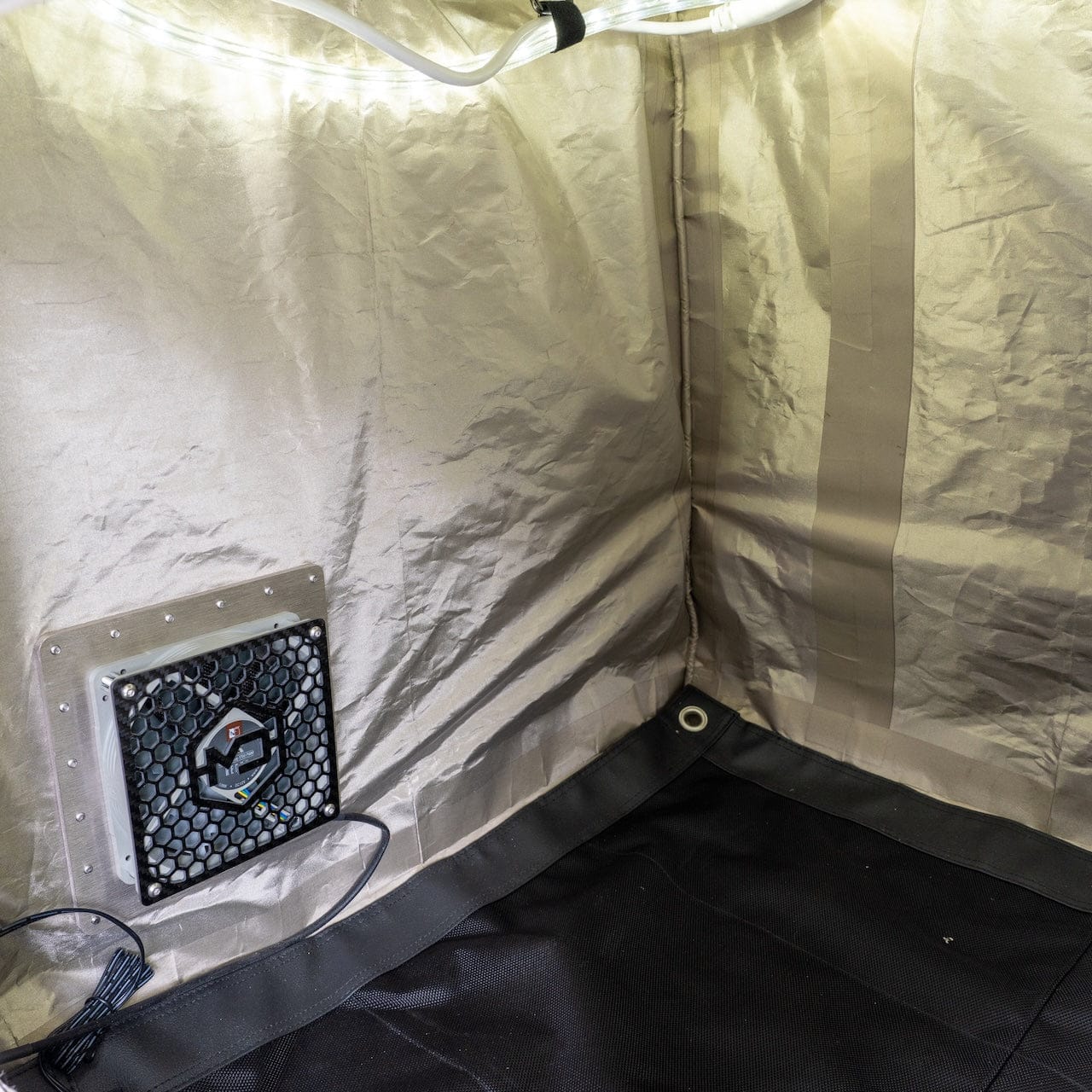

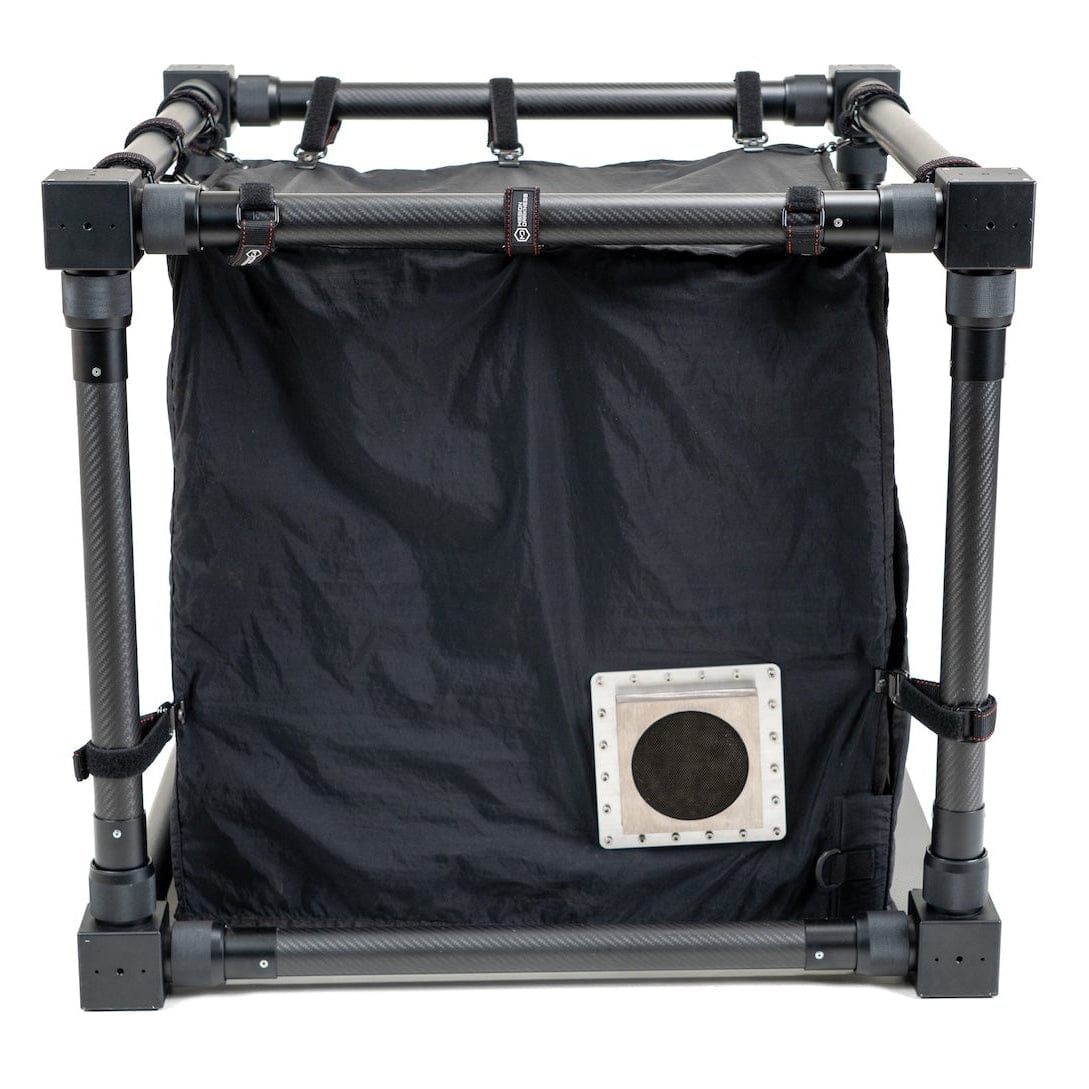

• Two shielded honeycomb air vents with two multi-speed Noctua fans (intake and exhaust) and controller

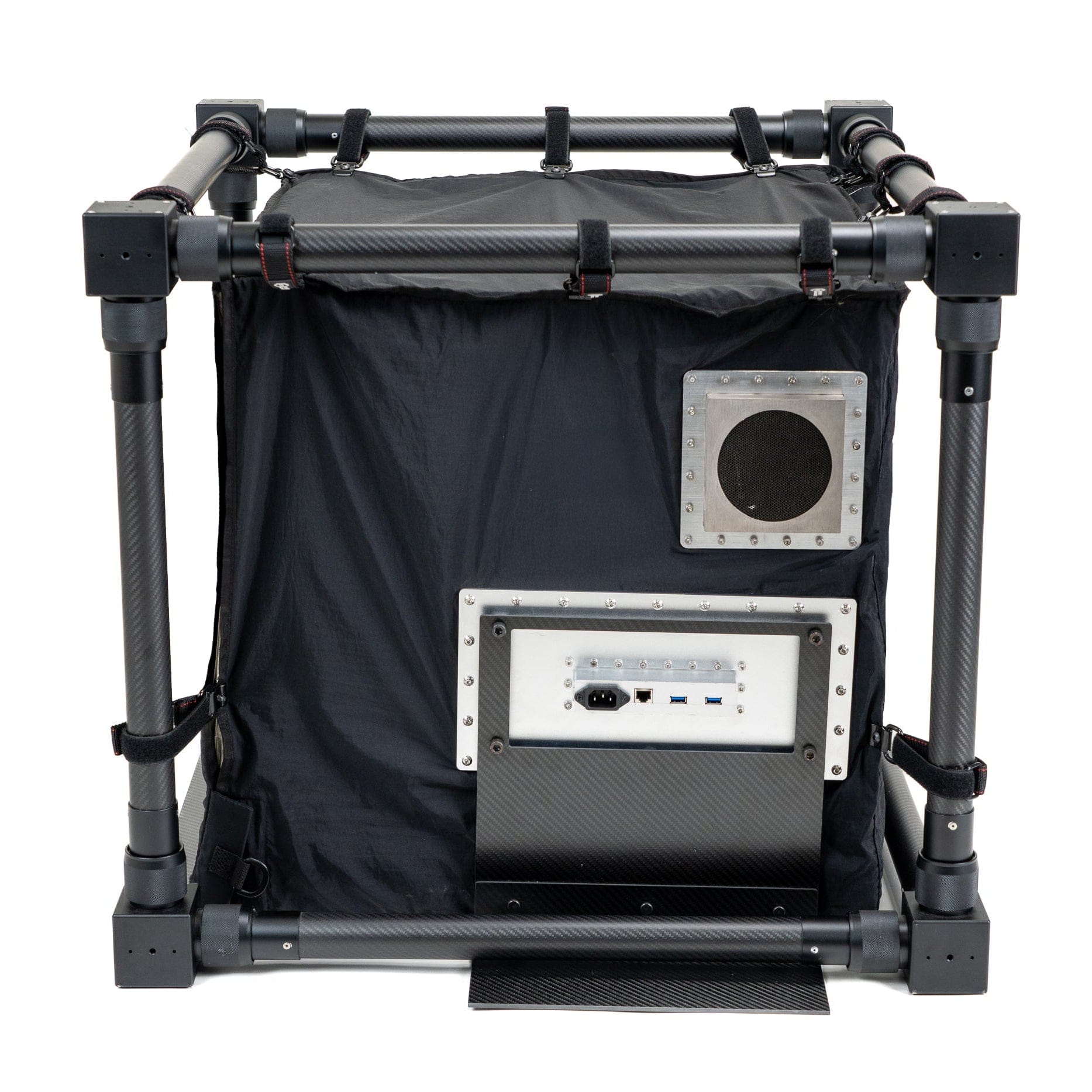

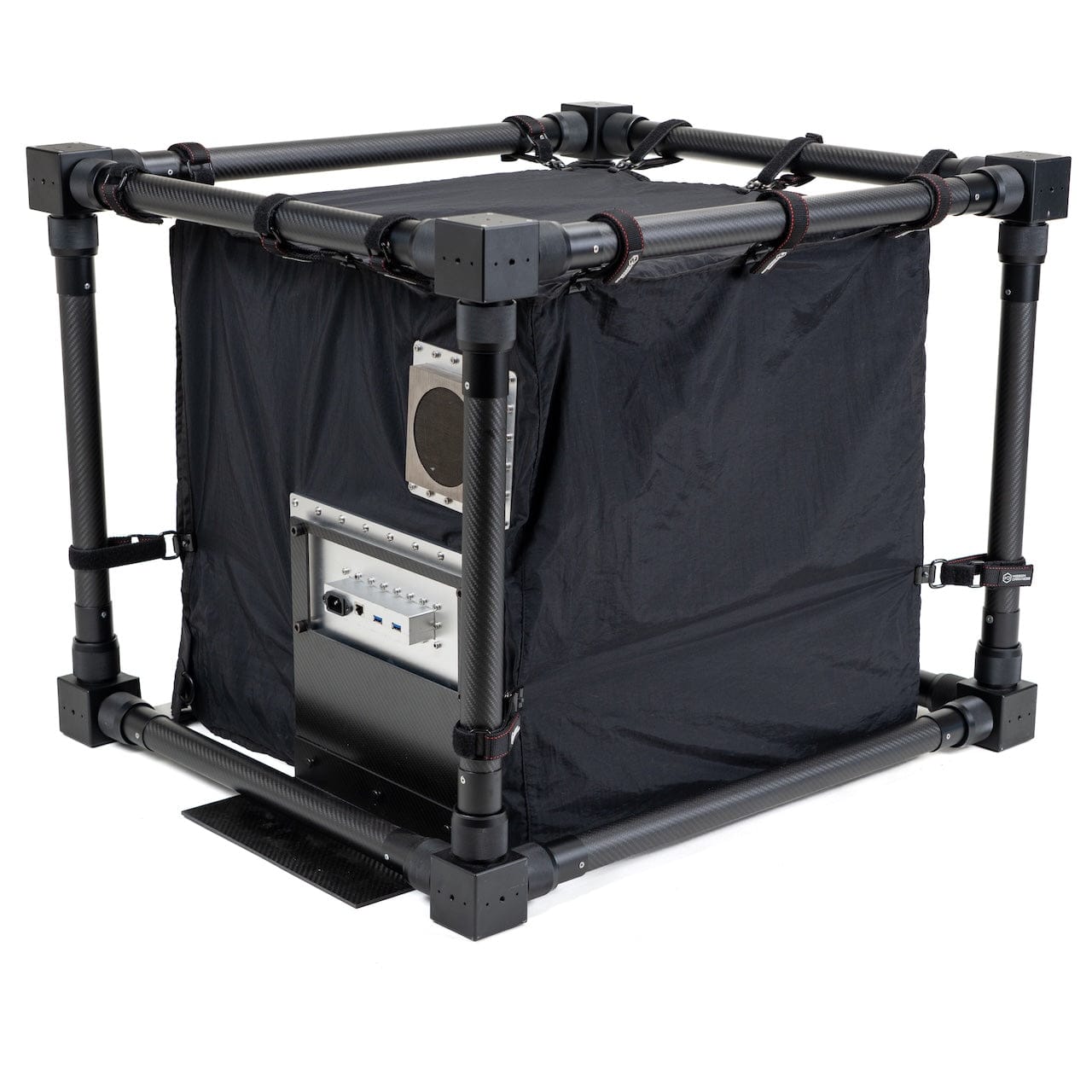

• CE-certified shielded multiport filter — 1 × AC power, 1 × RJ45 ethernet, 2 × USB A 2.0 ports

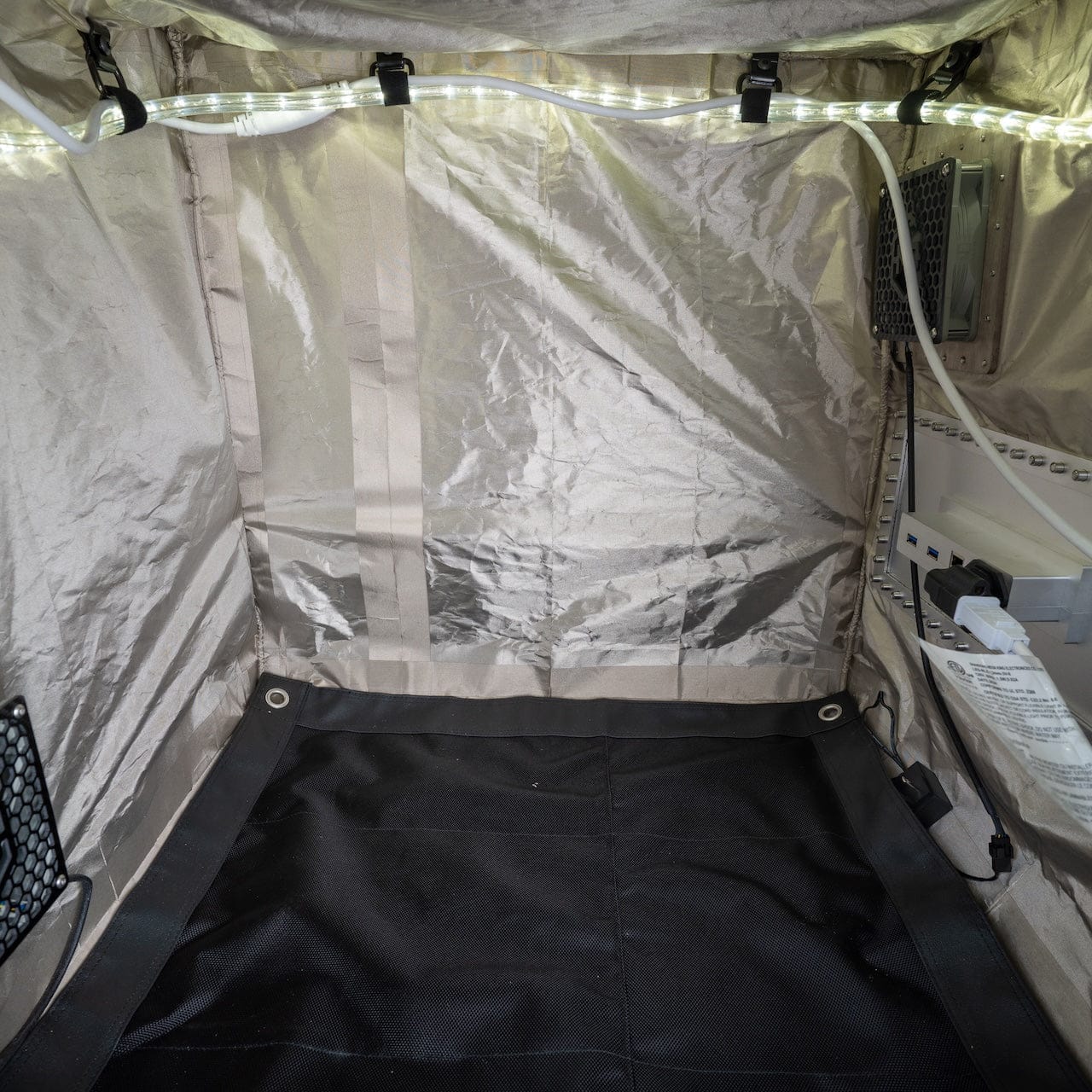

• 6 ft LED rope light along the ceiling for interior visibility
• Ballistic nylon non-slip floor mat
• Adjustable Velcro tension straps for precise tent fit within the frame
• Includes a 38" lockable, waterproof, crushproof Condition 1 transport case with wheels
• Three-year limited warranty
• Assembled in the USA

Technical Specifications

Dimensions

• Internal Faraday tent: 0.61 m × 0.61 m × 0.61 m (2' L × 2' W × 2' H)
• External frame: 0.76 m × 0.76 m × 0.66 m (2'6" L × 2'6" W × 2'2" H)
• Internal volume: 0.23 m³ / approx. 227 L (8 cubic feet)
• Doorway opening: 35.6 cm × 35.6 cm (14" W × 14" H)
• Shipping weight: approx. 31.75 kg (70 lbs) including transport case

Shielding Performance

• Standards: MIL-STD-188-125 and IEEE 299-2006
• Frequency range: Low MHz to 40 GHz
• Construction: Two layers of TitanRF Faraday Fabric, all seams sealed with TitanRF Faraday Tape
• Door seal: Patent-pending RFMagLink magnetic frame with carbon fibre stiffeners
• Threats blocked: Wi-Fi, Bluetooth, cellular (incl. 5G), GPS, RFID, NFC, EMI, EMR, EMF
• SKU: MDFT-CCTENT-CAPSULE

Frame and Filter

• Frame material: Carbon fibre with modular aluminium corner joints (patent pending)
• Shielded filter ports: 1 × AC power, 1 × RJ45 ethernet, 2 × USB A 2.0 (CE certified)
• Customisation: Additional shielded filters, EMP surge arrester filter, custom dimensions available
• Assembly tool: 3 mm Allen wrench (included) — required only to mount the filter to the filter mounting plate

Applications

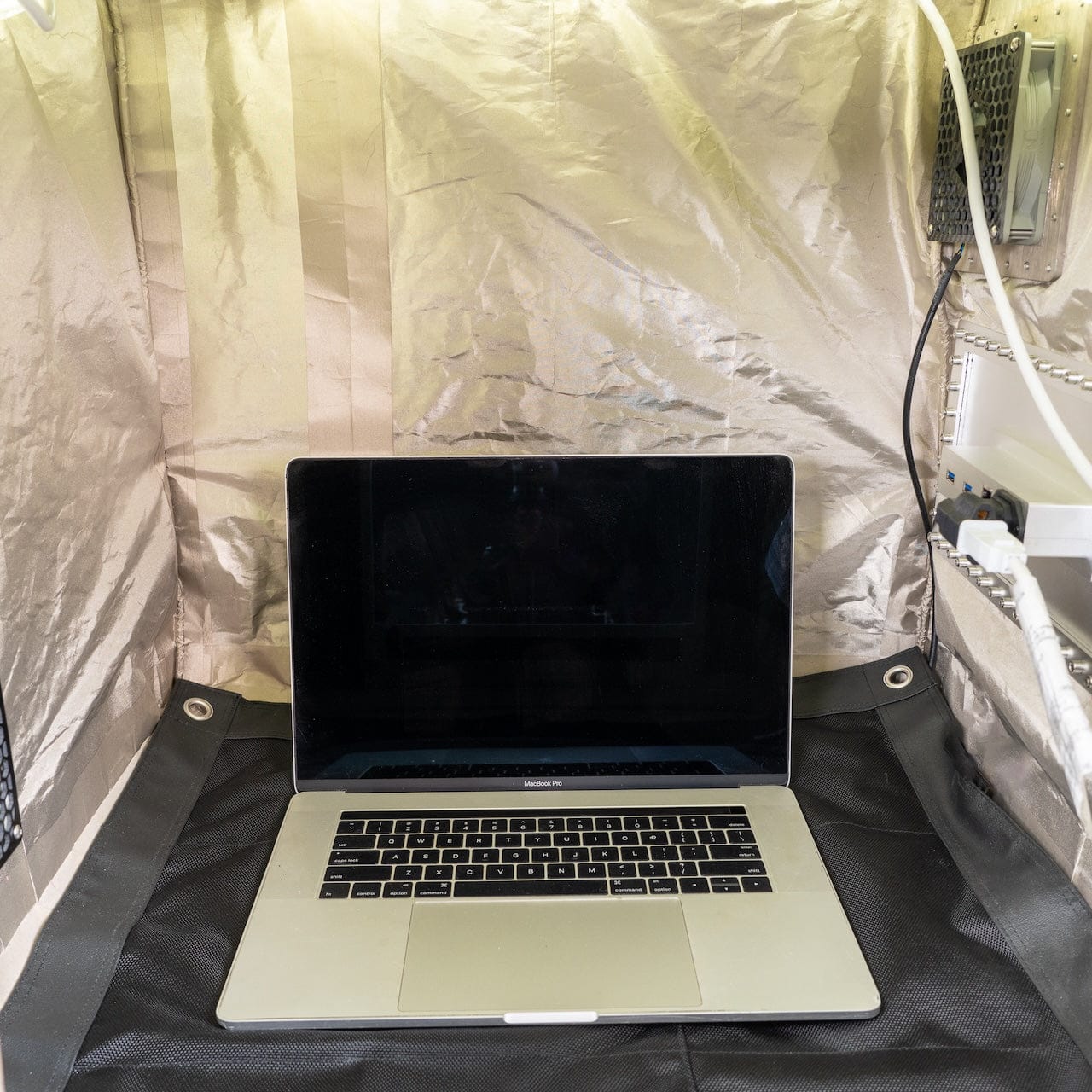

• Digital forensics — secure RF isolation for examination of laptops, tablets, phones and IoT devices
• Hardware, software and EMI testing — interference-free environment for accurate device assessment
• Aerospace development and testing of RF-sensitive equipment
• Military and defence — secure communications and electronic countermeasures
• Government and corporate sensitive device containment for cleared workspaces

What's in the Set

• Assembled Faraday enclosure with protective nylon outer shell, clamps and Velcro tension straps
• Self-standing carbon fibre tent frame with aluminium connectors
• Shielded multiport filter panel (AC, RJ45, 2 × USB) with carbon fibre T-stand floor base, attachment hardware and 3 mm Allen wrench
• 2 × shielded honeycomb air vents
• 2 × Noctua multi-speed fans with controller (lower intake, upper exhaust)
• 6 ft LED rope light installed along the ceiling
• Ballistic nylon non-slip floor mat
• TitanRF Faraday Patches — 6 × large, 4 × medium
• TitanRF Faraday Tape — 10 yd of 2.5" wide, 4 yd of 6" wide
• 4 × USB cable sets
• RJ45 ethernet cable
• AC power cable
• Power strip / surge protector
• 2 × USB A/A extension cables
• 10 × pairs of nitrile handling gloves
• 38" lockable, waterproof, crushproof Condition 1 transport case with wheels

Commonly Used to Shield

• Laptops, tablets and cell phones
• IoT and smart home devices
• Drones and small UAVs
• Network devices and routers
• Radios and communication devices
• Other large electronics

Care Instructions

CYPHERCYLENT Faraday enclosures are constructed with TitanRF Faraday Fabric and Tape containing copper and nickel. The materials are conductive and flammable. Keep the capsule away from outlets, plugs, cables and any source of electricity to reduce fire risk. Avoid puncturing the fabric or exposing it to extended water contact.

Warranty

The CYPHERCYLENT Faraday Capsule is backed by a three-year limited warranty against defects in materials and workmanship under normal use. Coverage includes the carbon fibre and aluminium frame, conductive shielding fabric, fans, lighting and power filter components. Exclusions apply for accidental damage, modification, cosmetic wear and non-Mission Darkness accessories.
