Mission Darkness™ TitanRF Faraday Shipping Liner

Product Overview

The Mission Darkness TitanRF Faraday Shipping Liner is a custom-sized RF and EMP shielded liner designed to drop into standard shipping boxes, pallet crates, Pelican-style cases and drone-transport containers. Built from multiple layers of TitanRF Faraday Fabric and TitanRF Faraday Tape, the liner forms a continuous conductive envelope around the contents — blocking wireless communication and protecting sensitive electronics from electromagnetic threats during transit.

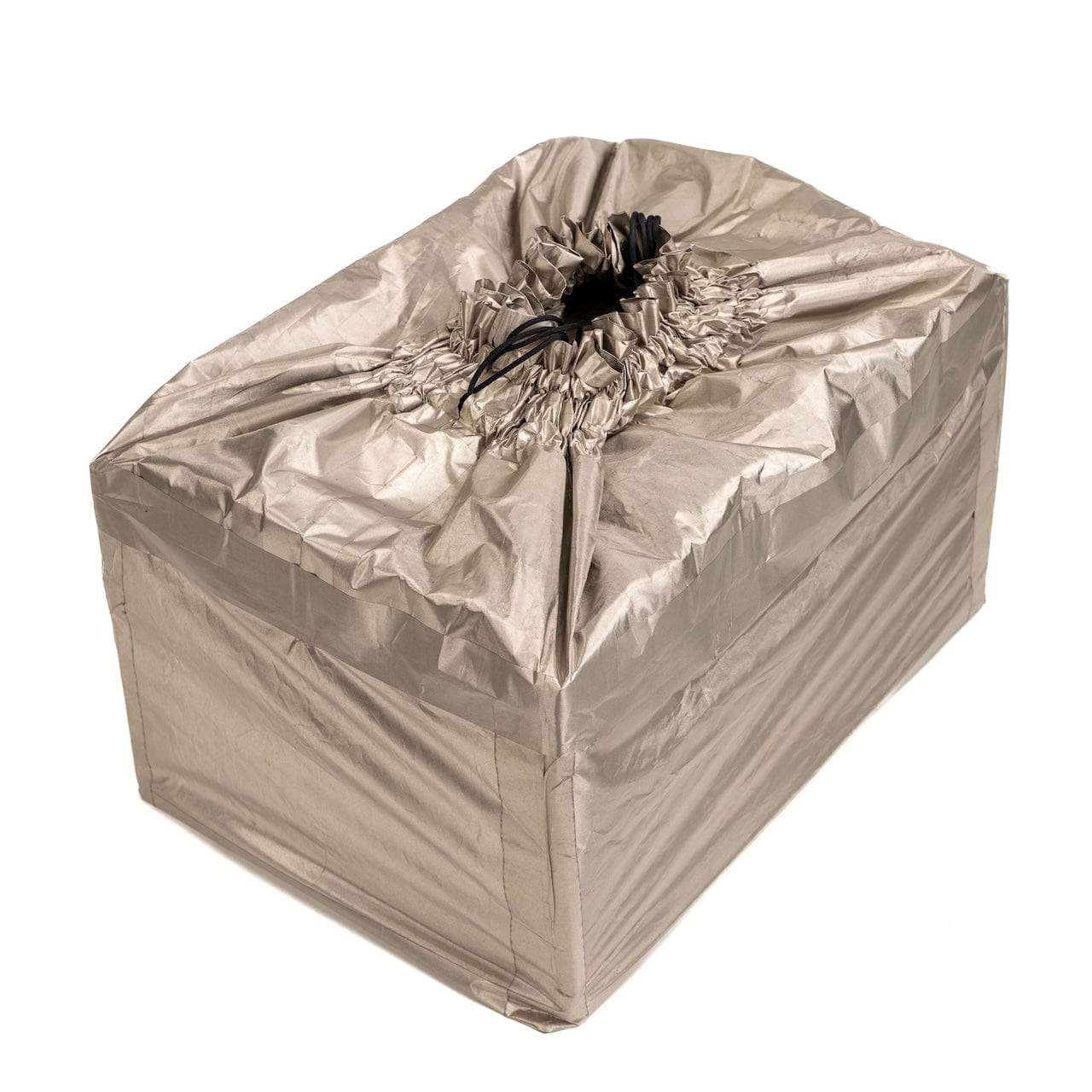

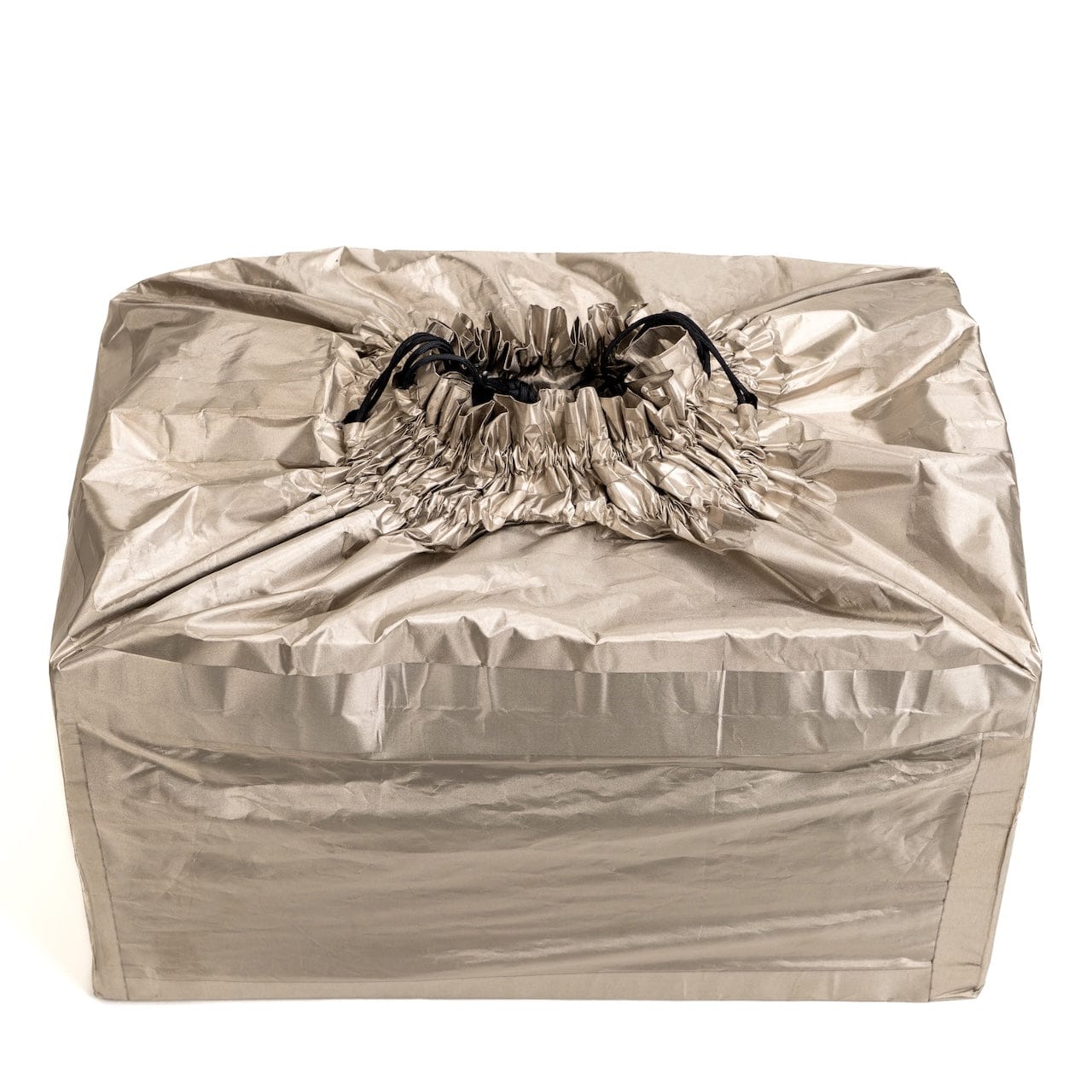

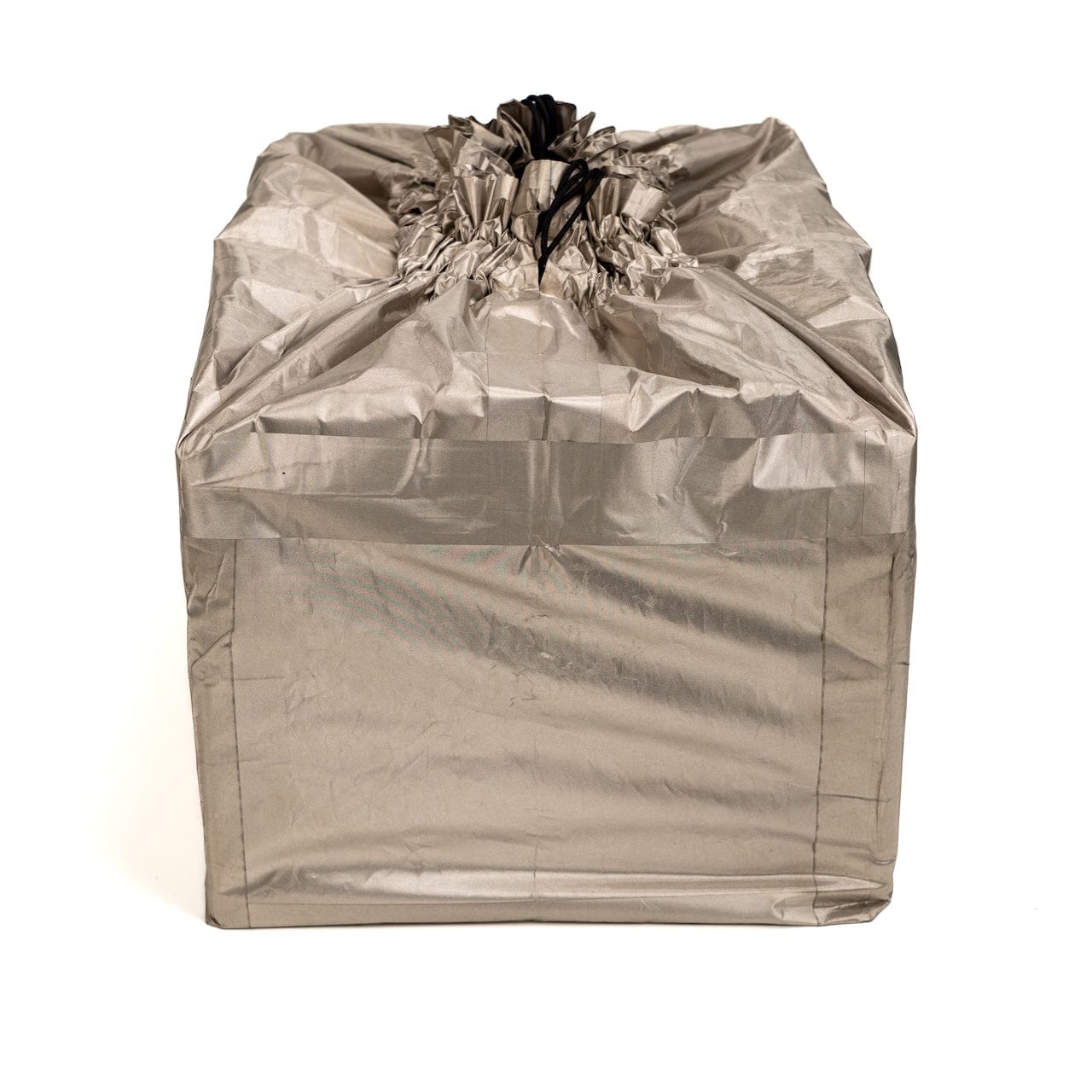

A defining feature is the drawstring cinch-style closure, which replaces conventional folded or magnetic seals with a wide, unobstructed opening — ideal for fitting larger drones and equipment while maintaining ease of operation and rapid sealing. The liner remains lightweight, flexible and highly portable, compressing easily for storage in a pack, staging kit or field case.

Two standard sizes are stocked: a 24" × 16" × 12" liner suited to standard shipping boxes and Pelican-class cases, and a 48" × 40" × 48" pallet-crate liner for larger equipment and full drone payloads. Custom dimensions are available on request — contact us for a quote.

*Please note this product may incur a 10-day lead time.

Key Features

• Full-coverage reusable Faraday liner with double-layer TitanRF Faraday Fabric on the bottom and all four walls
• Blocks Wi-Fi (2.4 & 5 GHz), Bluetooth, cellular (including 5G), GPS, RFID, NFC and other RF sources from low MHz up to 40 GHz
• Lab tested to MIL-STD-188-125 and IEEE 299-2006 shielding effectiveness standards
• Documented protection against HEMP, CME and related electromagnetic threats
• Quick-access cinch-top closure seals fully without reducing usable internal volume

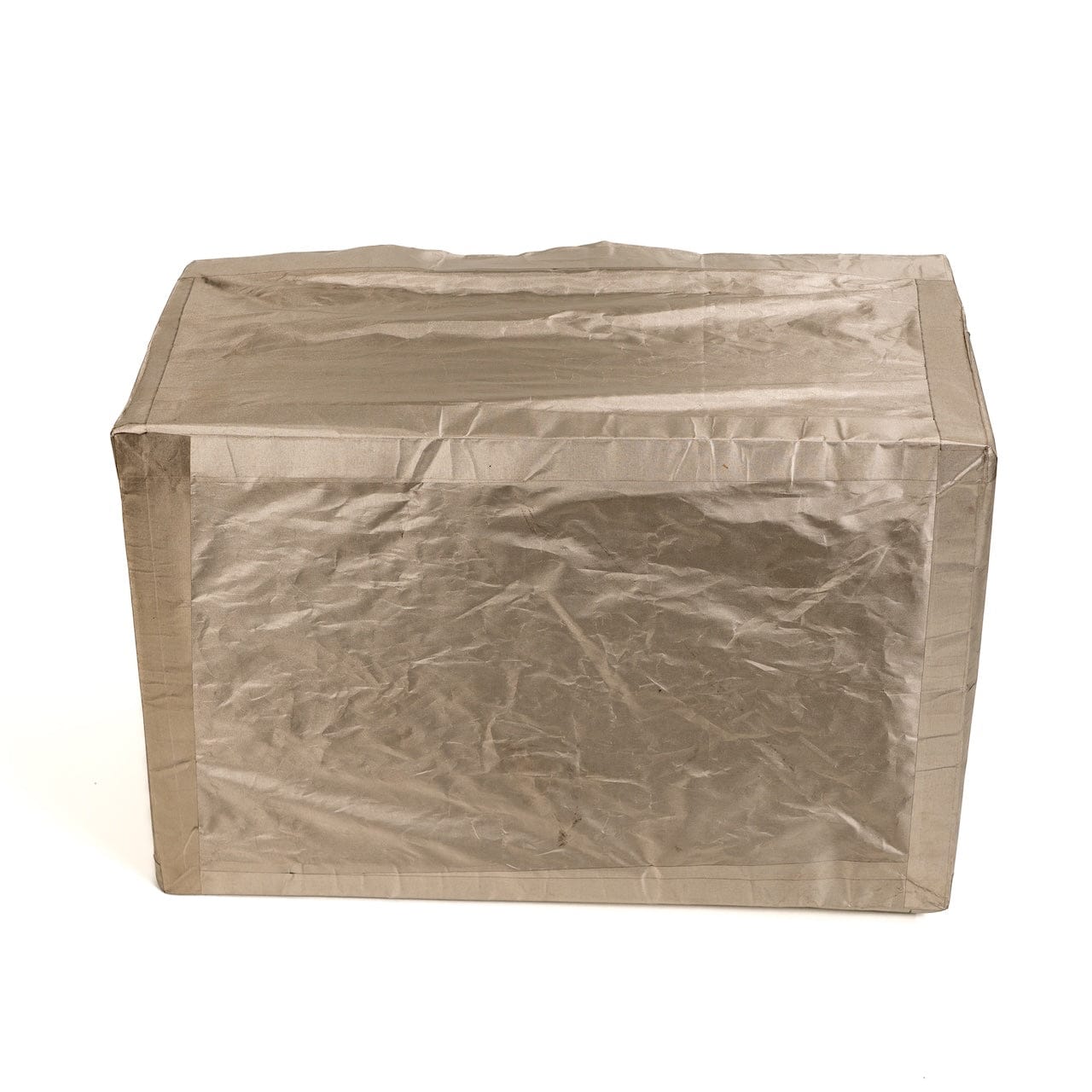

• Tape-sealed seams using TitanRF Faraday Tape maintain continuous conductivity across joints and panel interfaces
• Lightweight, portable and field-deployable — folds down compactly for travel

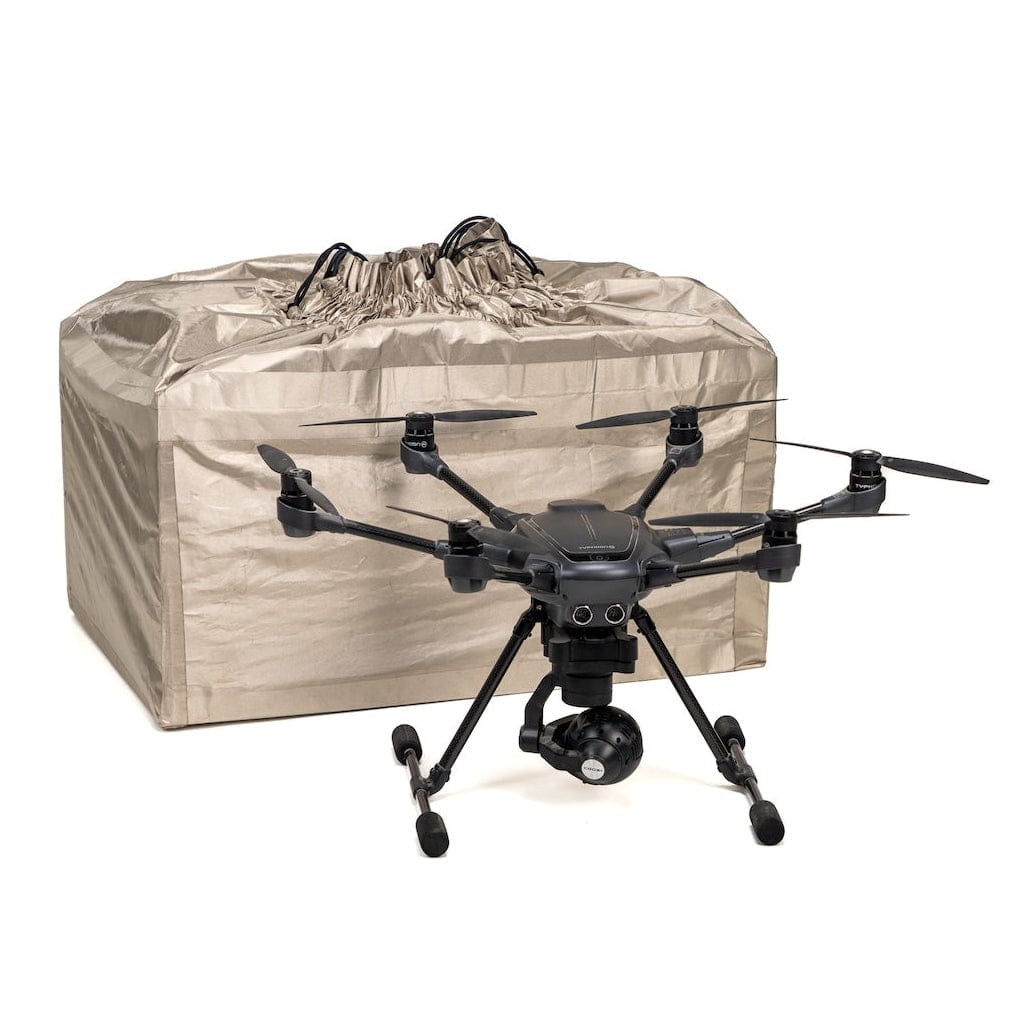

• Drone-ready shipping protection for BVLOS trials, drone-in-a-box deployments and remote sensor logistics
• Designed and assembled in the USA

Technical Specifications

Standard Sizes

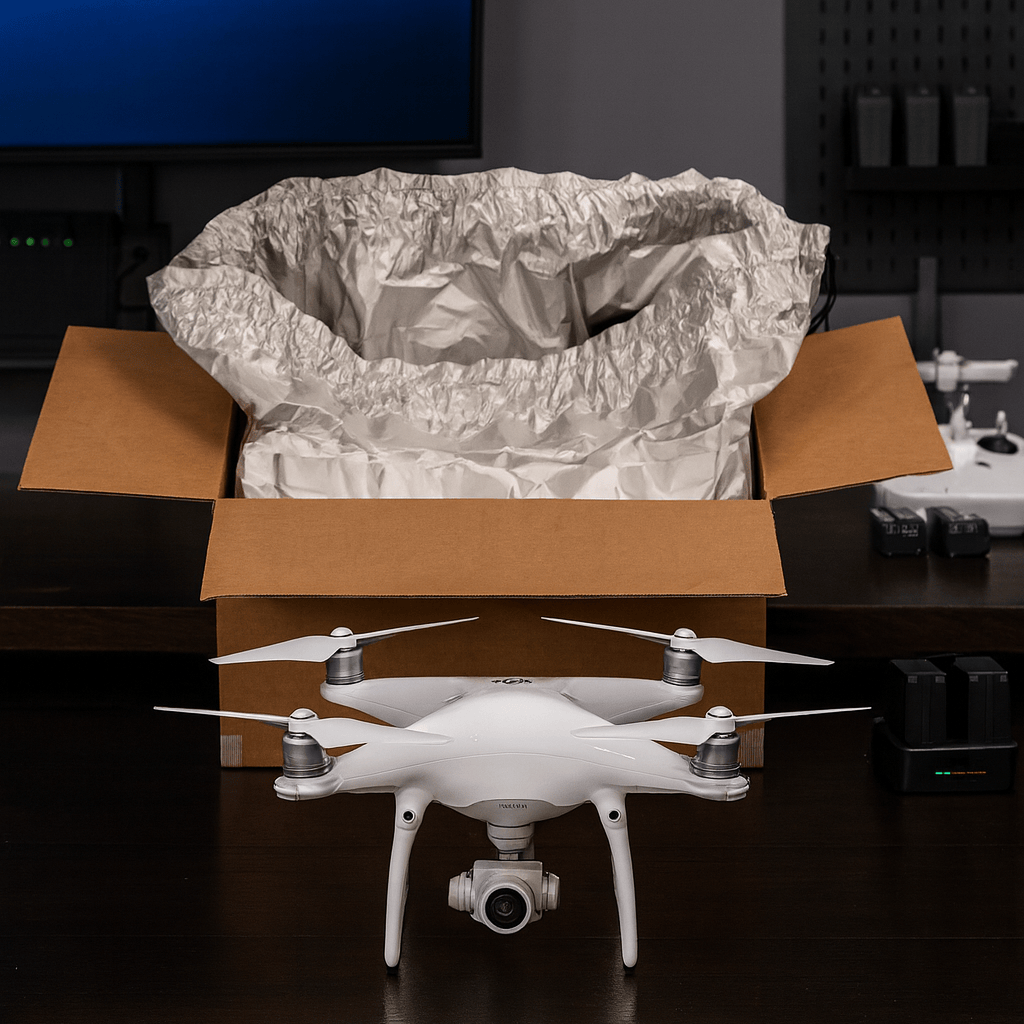

• 24" × 16" × 12" liner: Fits standard shipping boxes and Pelican-class cases — SKU MDFF-TRF-LINER-24-16-12

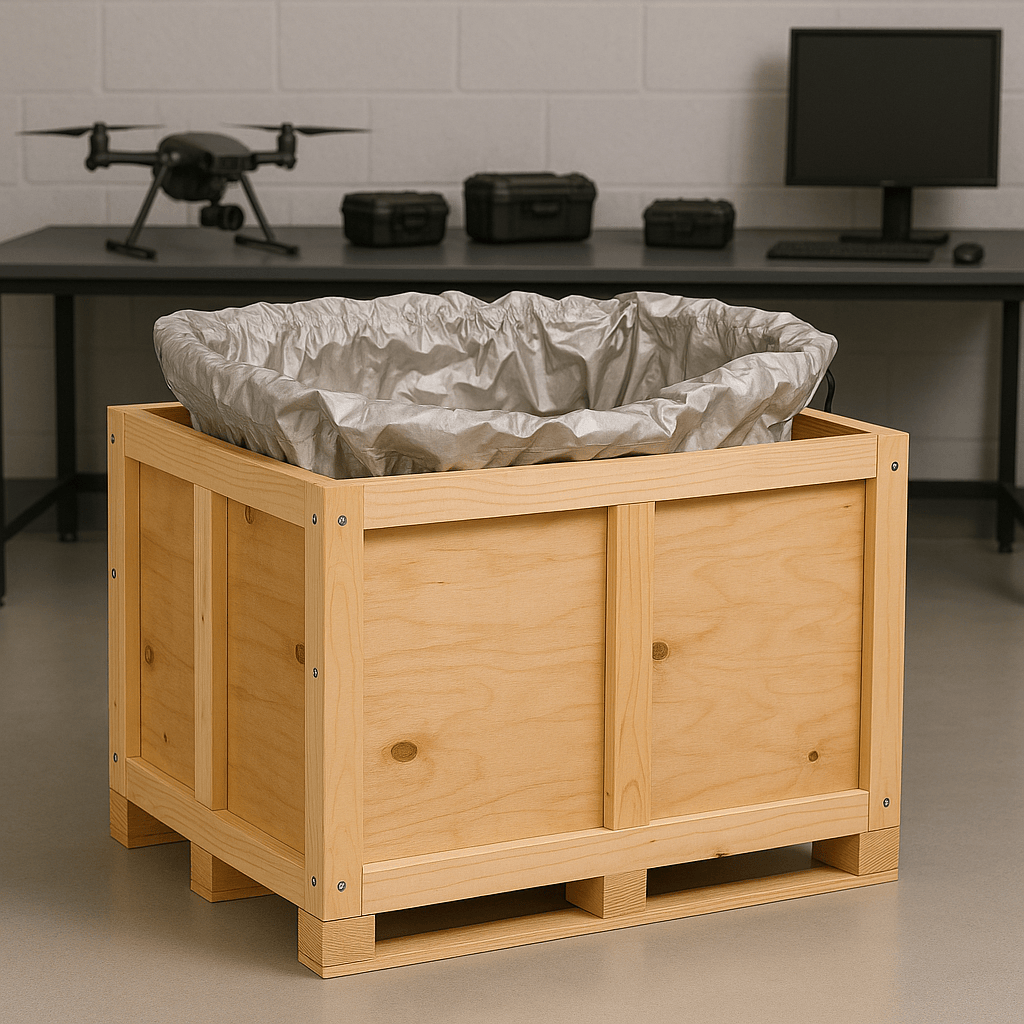

• 48" × 40" × 48" liner: Fits standard pallet crates and large equipment containers — SKU MDFF-TRF-LINER-48-40-48
• Custom sizes: Built to order — SKU MDFF-TRF-LINER-CUSTOM

Shielding Performance

• Standards: MIL-STD-188-125 and IEEE 299-2006
• Typical attenuation: 80 dB–120 dB from 10 MHz to 40 GHz (frequency-dependent, multi-layer construction)
• Threats mitigated: Wi-Fi, 5G, LTE, Bluetooth, GPS, RFID, NFC, EMP/HEMP, CME, EMF/EMI, side-channel RF collection

Materials and Construction

• Shielding fabric: TitanRF Faraday Fabric — polyester with copper and nickel
• Seam sealing: TitanRF Faraday Tape across all joints and panel interfaces
• Construction: Two-layer Faraday wall and base for redundant shielding
• Closure: Drawstring cinch-style top with full RF seal

How It Works

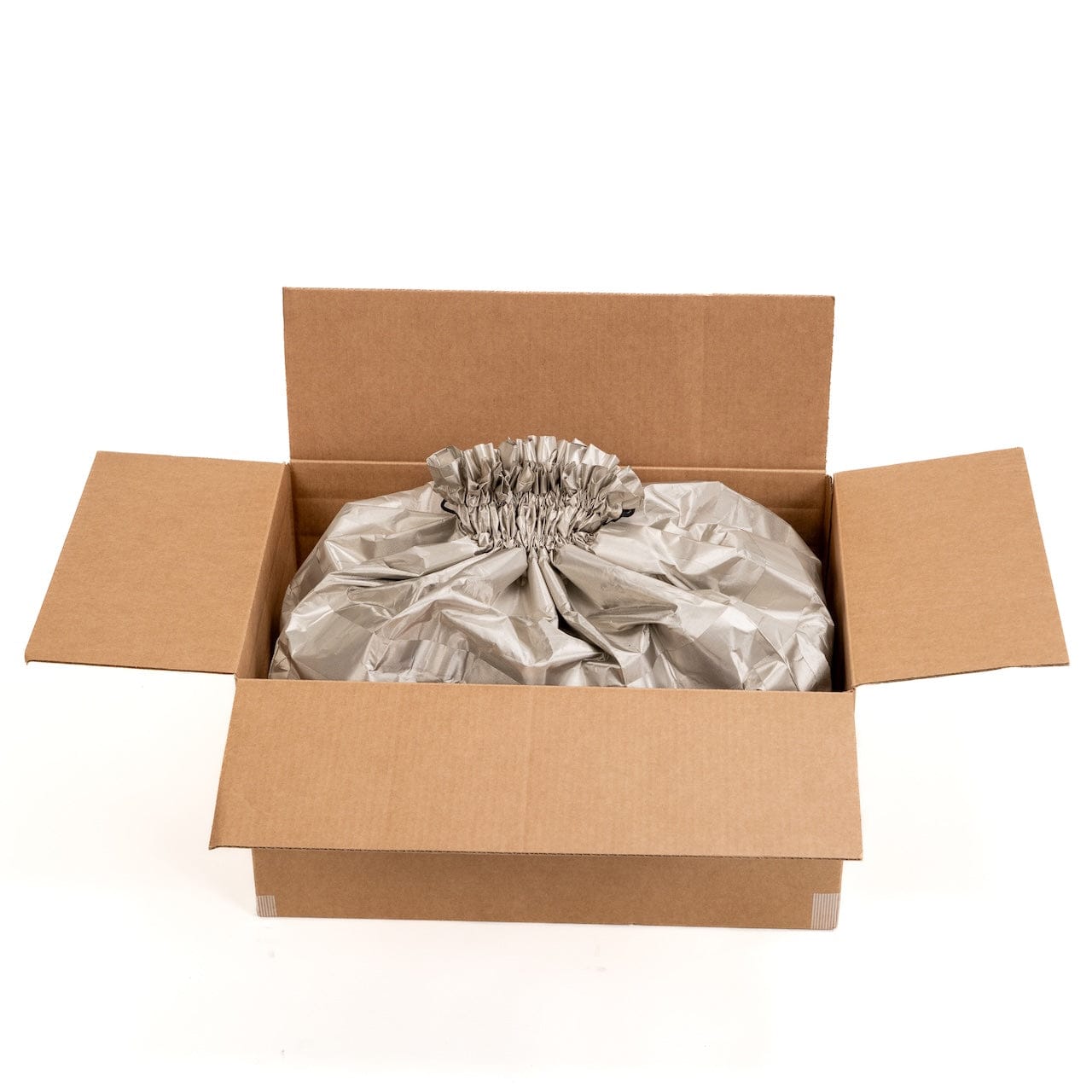

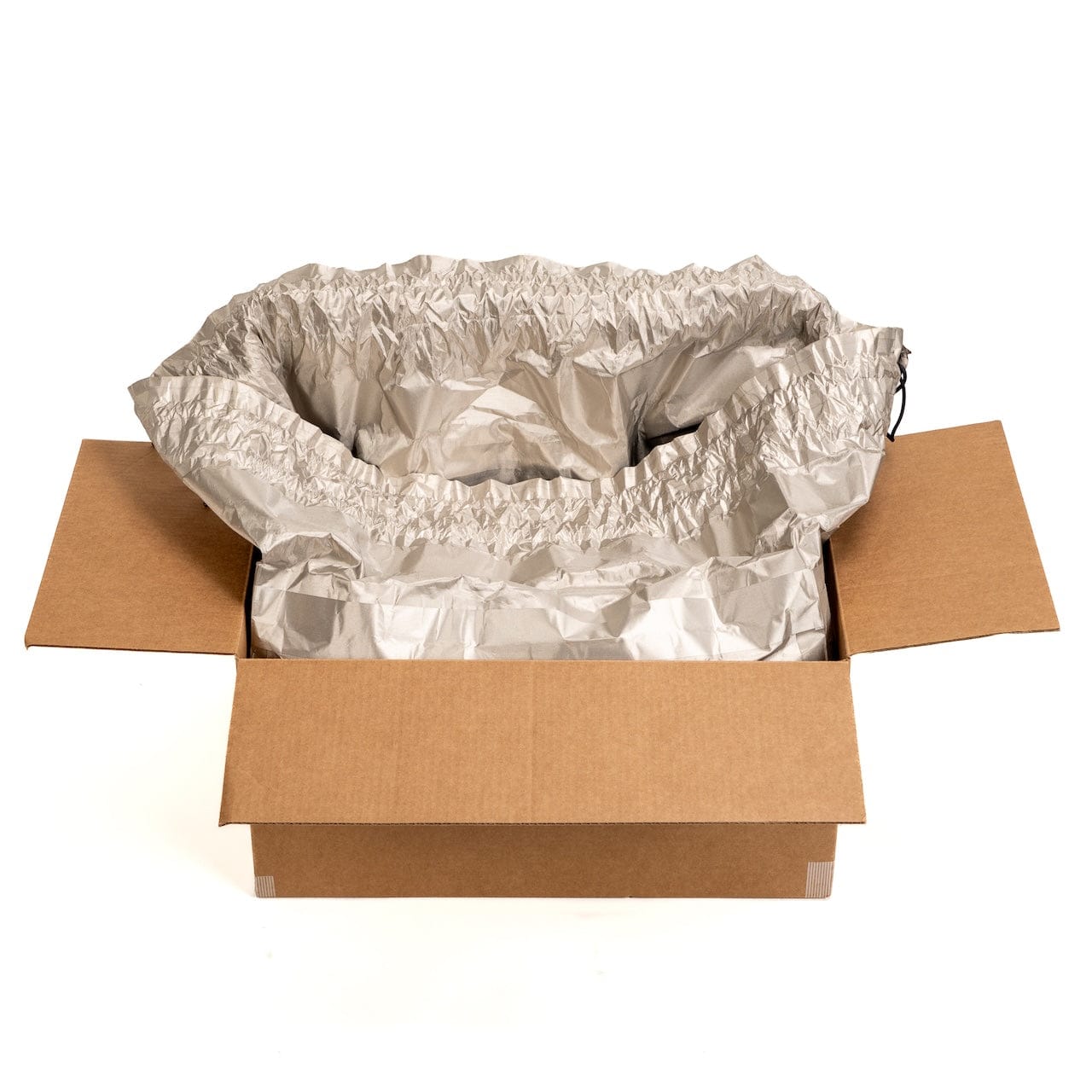

• Drop the liner into your existing shipping box, crate or case

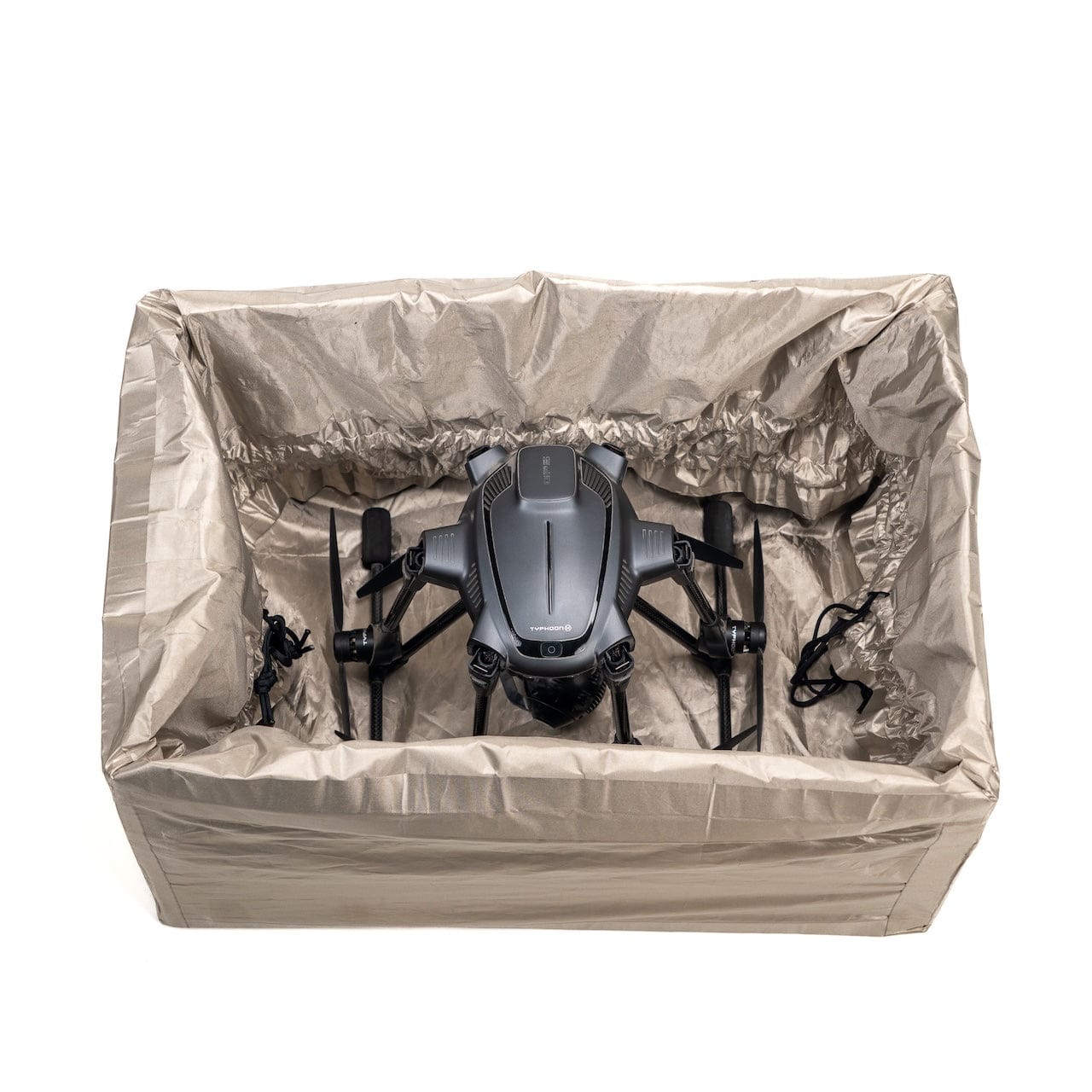

• Load the contents into the lined cavity
• Cinch the drawstring top closed for a continuous Faraday seal
• Seal the outer packaging as usual — the liner protects from the inside

Applications

• Drone payload and ground-station shipping — protect radios, flight computers and crypto modules in transit
• Defence, law-enforcement and forensics logistics — maintain signal isolation and chain of custody between facilities
• High-value electronics shipping — servers, SDRs, modems, SATCOM gear, ICS controllers, prototype hardware
• EMP and CME hardened logistics — add a Faraday layer inside existing packaging for HEMP/CME survivability
• Export-controlled electronics movement — reduce RF exposure during air or ground freight

Care Instructions

The Faraday material inside will become defective with extended water contact or any punctures. Do not use the liner to hold wet devices or carry unprotected sharp objects. Store flat or folded in a clean, dry environment.

About Mission Darkness

Mission Darkness by MOS Equipment is a leading manufacturer of Faraday bags, enclosures and EMP shielding solutions for digital forensics, defence and government customers. TitanRF Faraday Fabric is independently lab tested and certified to MIL-STD-188-125 and IEEE 299-2006. Available from Aus Security Products — contact us for custom sizes, bulk pricing and availability.
