AlphaLab Inc. - AC Milligauss Meter with NIST Certificate
Product Overview

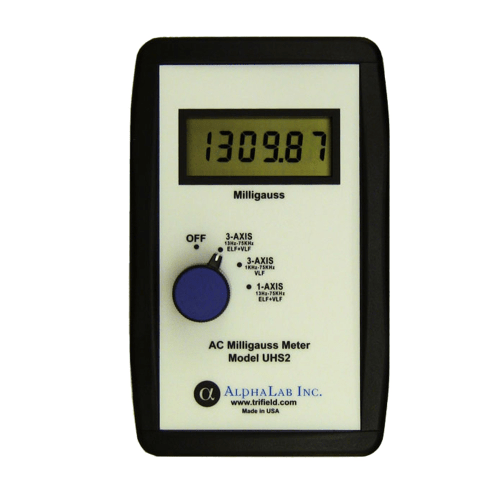

The AC Milligauss Meter Model UHS2 measures AC magnetic field in a wide frequency range of 13 Hz to 75 kHz (75,000 Hz). The frequencies include most ELF (that is, frequencies below 1 kHz) and VLF (above 1 kHz) magnetic fields.
The meter measures the true 3-axis magnitude of the AC field. Two other more specialized measurements can also be performed: 3-axis VLF-only (1 kHz – 75 kHz) to measure the strength of higher-frequency fields, and 1-axis full bandwidth (13 Hz – 75 kHz) to determine the principal direction of the AC magnetic field.
Most measurements will be performed with the knob turned to 3-Axis ELF+VLF. This setting is for measurement of true magnitude of magnetic field at the widest range of frequencies (ELF plus VLF).
Also comes with a removable rubber boot and NIST certificate.
This meter may incur a 10–14 day lead time. Please contact us for more information.
Technical Specifications
- Frequency Range: 13 Hz to 75 kHz
- Maximum Range: 1999.99 mG
- Resolution: 0.01 mG
- Accuracy: +/- 3% from 45 Hz to 5 kHz, +/- 7% below 45 Hz and above 5 kHz
- Field Type: AC Magnetic
- Number of Axes: 3-axis, single axis
- Battery: 9 volt alkaline (around 20 hour life) / Low Battery indicator
